Part Number: P560711

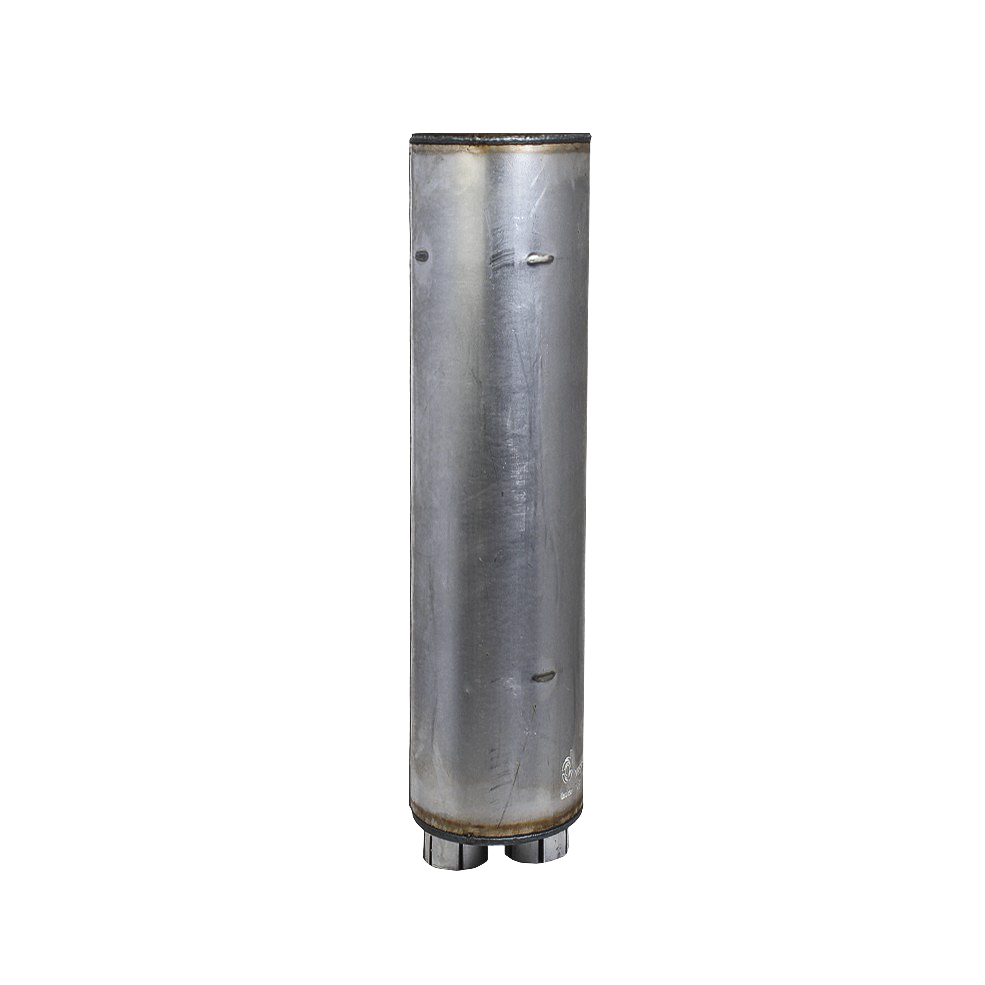

Muffler, Round Style 5

SKU: P560711 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 5

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	214.88 MM / 8.46 IN
Body length	558.8 MM / 22 IN
Filter style	Style 5
Inlet diameter	76.66 MM / 3.02 IN
Manufacturer	Donaldson
Outlet diameter	76.66 MM / 3.02 IN
Overall length	596.9 MM / 23.5 IN
Rated flow hr	30.8 CMM
Rated flow lr	17.8 CMM
Rated flow mr	25.1 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	12:00
