Part Number: P174249

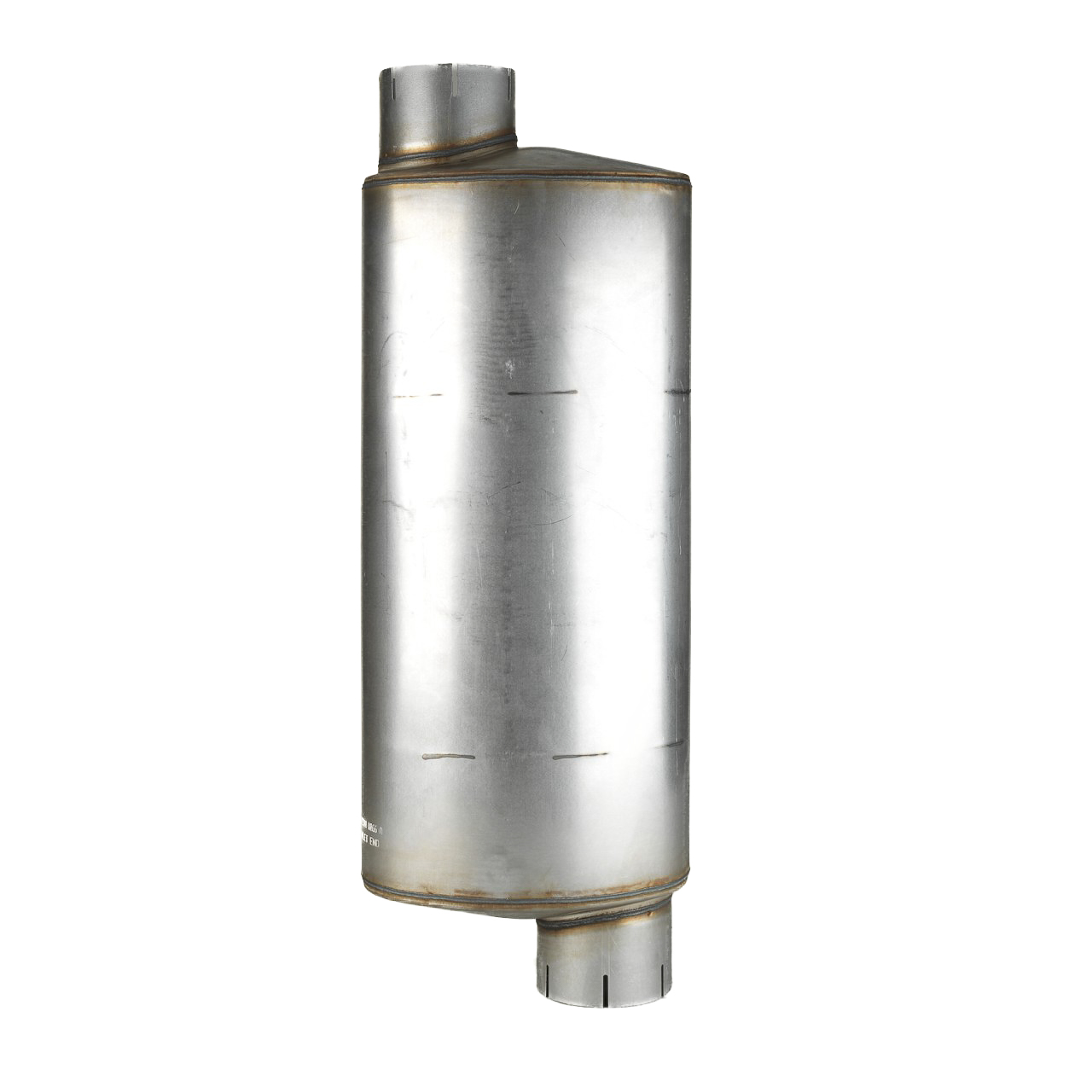

Muffler, Oval Style 2

SKU: P174249 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2

Additional information

Attenuation hr	15 DBA
Attenuation lr	10 DBA
Body diameter maximum	381 MM / 15 IN
Body diameter minimum	254 MM / 10 IN
Body length	806.45 MM / 31.75 IN
Filter style	Style 2
Inlet diameter	153.39 MM / 6.04 IN
Manufacturer	Donaldson
Outlet diameter	153.39 MM / 6.04 IN
Overall length	1079.5 MM / 42.5 IN
Rated flow hr	105.8 CMM
Rated flow lr	61.1 CMM
Rated flow mr	86.4 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
