Donaldson | P556004. MUFFLER, ROUND STYLE 3

Donaldson

Donaldson | P556004. MUFFLER, ROUND STYLE 3

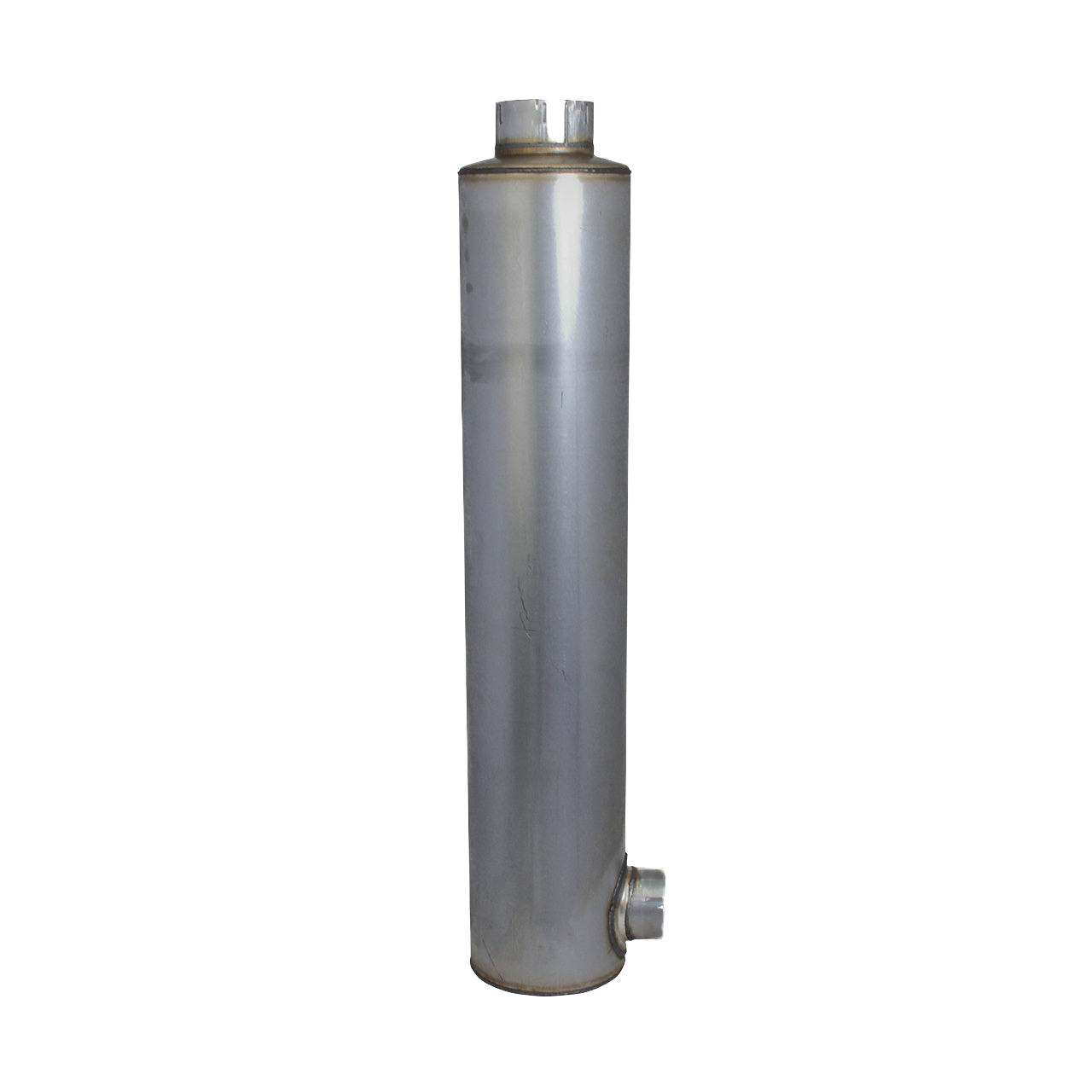

Part Number: P556004

Muffler, Round Style 3

SKU: P556004 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 3

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	228.6 MM / 9 IN
Body length	1125.5 MM / 44.31 IN
Filter style	Style 3
Inlet diameter	102.11 MM / 4.02 IN
Manufacturer	Donaldson
Outlet diameter	127.64 MM / 5.03 IN
Overall length	1219.2 MM / 48 IN
Rated flow hr	65.9 CMM
Rated flow lr	38.1 CMM
Rated flow mr	53.8 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
