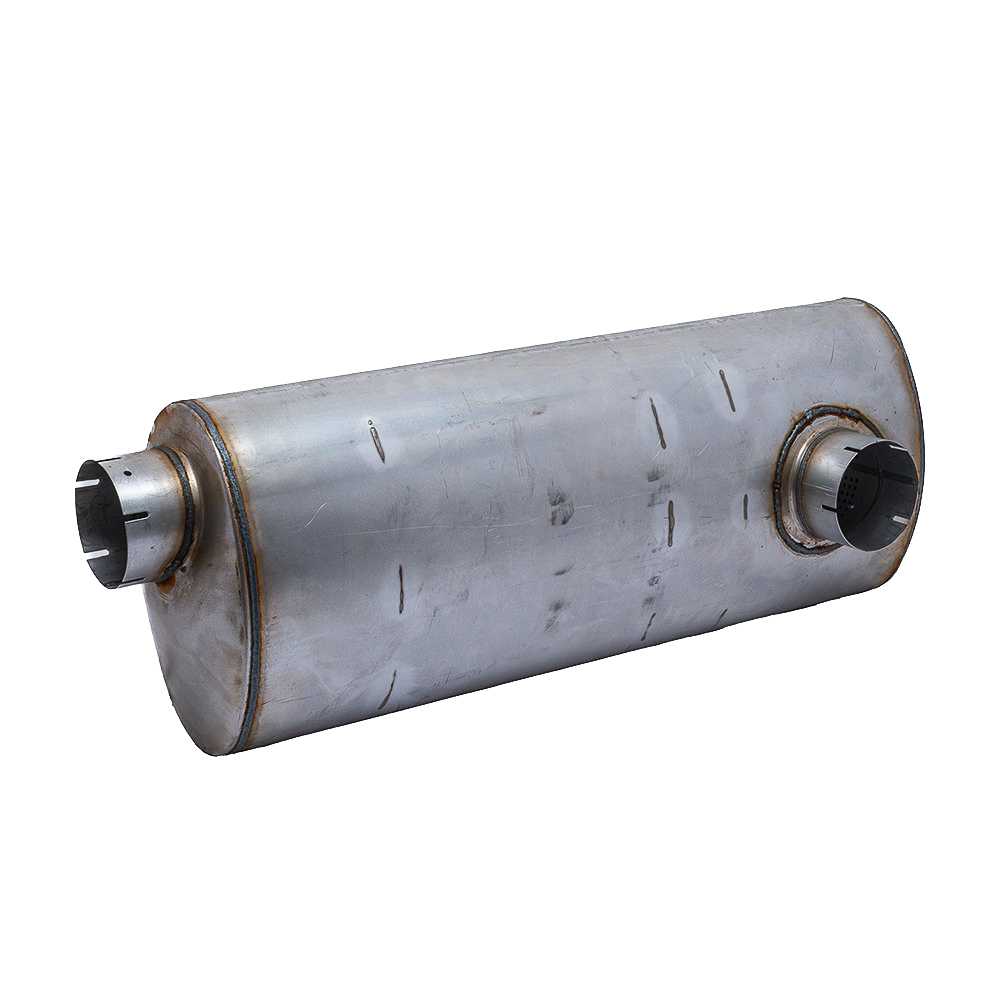

Donaldson | P174300. MUFFLER, OVAL STYLE 3

Donaldson

Donaldson | P174300. MUFFLER, OVAL STYLE 3

Part Number: P174300

Muffler, Oval Style 3

SKU: P174300 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 3

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	381 MM / 15 IN
Body diameter minimum	254 MM / 10 IN
Body length	911.1 MM / 35.87 IN
Filter style	Style 3
Inlet diameter	127.64 MM / 5.03 IN
Manufacturer	Donaldson
Outlet diameter	127.64 MM / 5.03 IN
Overall length	1012.7 MM / 39.87 IN
Rated flow hr	59.4 CMM
Rated flow lr	34.3 CMM
Rated flow mr	48.5 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
