Donaldson | P174260. MUFFLER, OVAL STYLE 2

Donaldson

Donaldson | P174260. MUFFLER, OVAL STYLE 2

Part Number: P174260

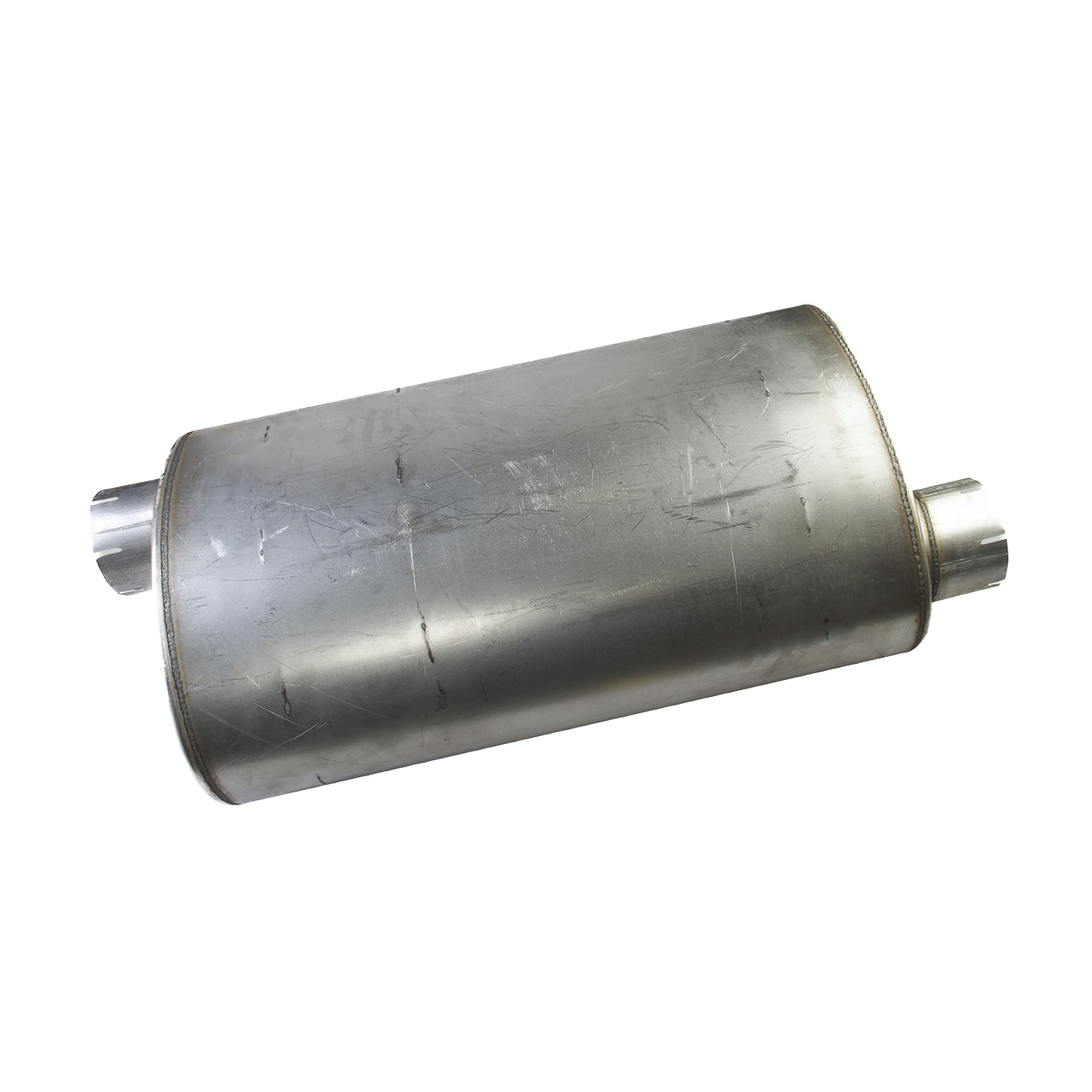

Muffler, Oval Style 2

SKU: P174260 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2

Additional information

Attenuation hr	18 DBA
Attenuation lr	12 DBA
Body diameter maximum	536.45 MM / 21.12 IN
Body diameter minimum	358.65 MM / 14.12 IN
Body length	889 MM / 35 IN
Filter style	Style 2
Inlet diameter	153.39 MM / 6.04 IN
Manufacturer	Donaldson
Outlet diameter	153.39 MM / 6.04 IN
Overall length	1193.8 MM / 47 IN
Rated flow hr	116.4 CMM
Rated flow lr	67.2 CMM
Rated flow mr	95 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
