Donaldson | P174524. MUFFLER, OVAL STYLE 3

Part Number: P174524

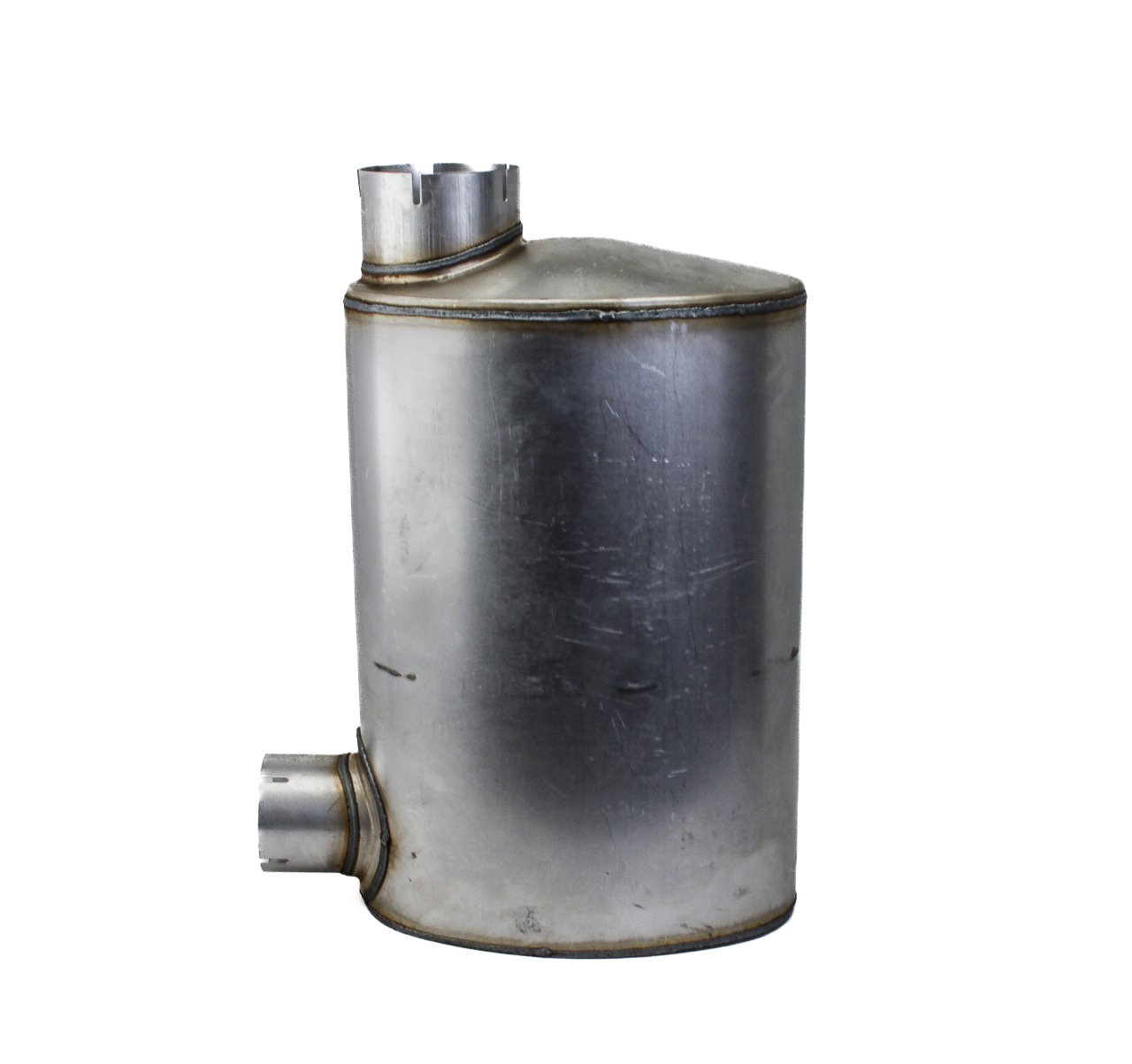

Muffler, Oval Style 3

SKU: P174524 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 3

Additional information

Attenuation hr	17 DBA
Attenuation lr	12 DBA
Body diameter maximum	381 MM / 15 IN
Body diameter minimum	254 MM / 10 IN
Body length	527 MM / 20.75 IN
Filter style	Style 3
Inlet diameter	102 MM / 4.02 IN
Manufacturer	Donaldson
Outlet diameter	127.63 MM / 5.02 IN
Overall length	641.4 MM / 25.25 IN
Rated flow hr	62.4 CMM
Rated flow lr	36 CMM
Rated flow mr	50.9 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
