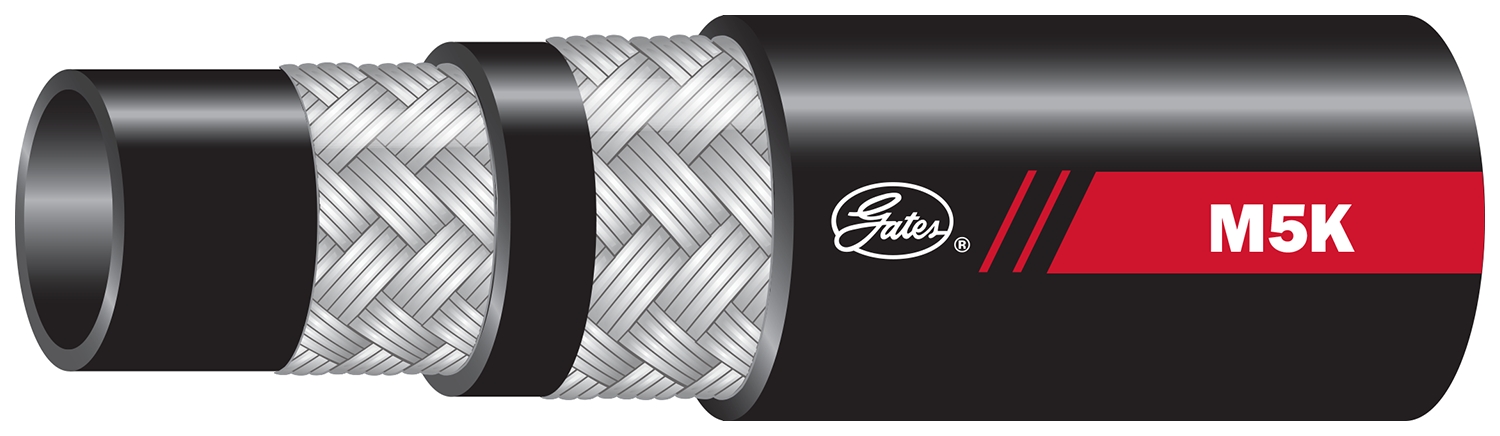

Part Number: 46574121
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of EN 857 2SC and ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4, -6, -8).
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of EN 857 2SC and ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4, -6, -8).
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +100 C / +212 F |
| UOM | EA |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 5000 psi / 344.7 bar |
| Min burst pressure | 20000 psi / 1379 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.375 in / 9.5 mm |
| Hose OD | 0.7 in / 17.8 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Nitrile/PVC – Type C2 |
| Cover type | Standard |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 2.5 in / 513 mm |
| Meets MSHA 2G | YES |
| Second Name | 46574121 |
| Product line | M5K Hydraulic Hose |
