Description
Computer-controlled manufacturing process virtually insures product uniformity for the AB Series Air Brake Hose.
Gates

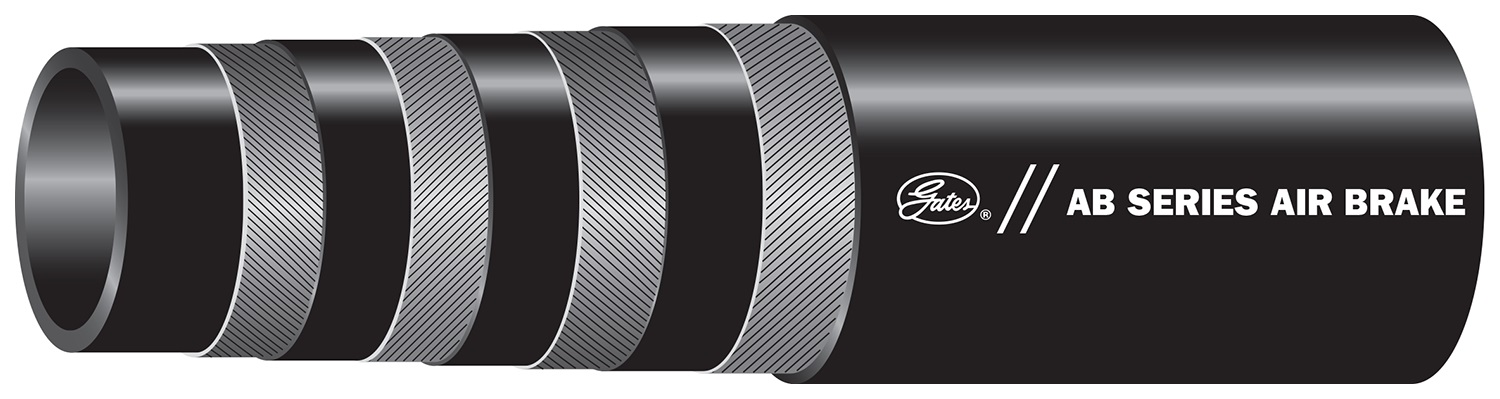

Gates | 32450604. 1/2 X 250FT REEL AIR BRAKE. AB Series Air Brake Hose
32450604
Part Number: 32450604
Computer-controlled manufacturing process virtually insures product uniformity for the AB Series Air Brake Hose.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash Size | 8 |
| Maximum Temperature | +100 C / +212 F |
| UOM | EA |
| Hose Pressure | Constant Pressure-Low |
| Reinforcement | 4-spiral, fiber |
| Dynamic WP | 225 psi / 15.5 bar |
| Min burst pressure | 1000 psi / 68.9 bar |
| Minimum Temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.875 in / 22.2 mm |
| Tube material | EPDM |
| Cover Material(s) | EPDM |
| Cover Type | Standard |
| Cover Color | Black |
| Length | 250 ft / 76 m |
| SAE specs & DOT | J1402, DOT FMVSS 106 |
| Second Name | 32450604 |
| Product Line | AB Series Air Brake Hose |
