Part Number: 46574099

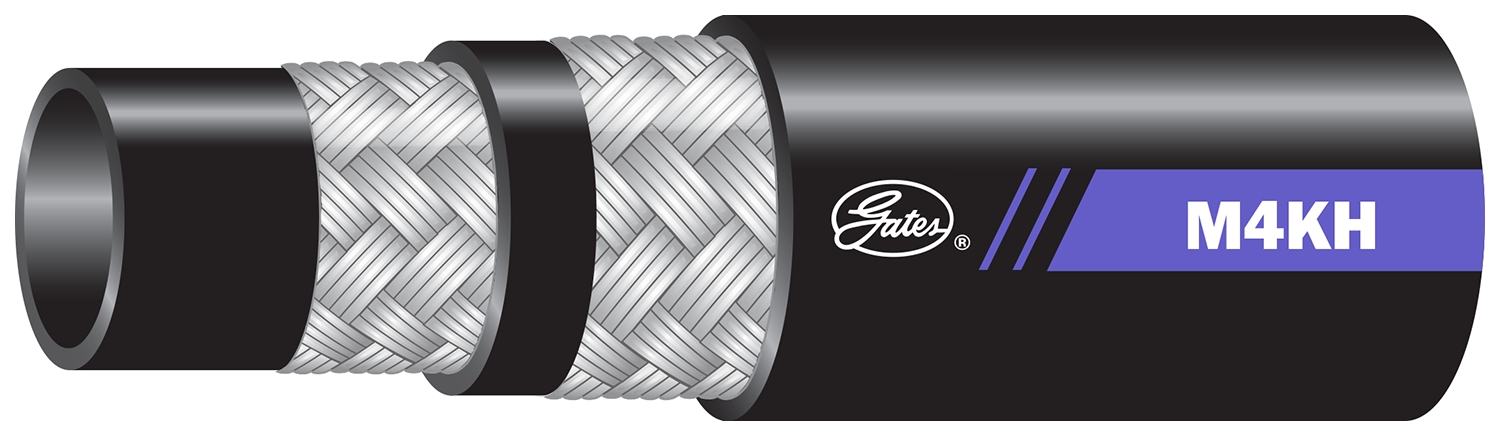

Global M4KH High-Temp hose is recommended for high–pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.
Global M4KH High-Temp hose is recommended for high–pressure hydraulic applications at elevated temperatures. Exceeds ISO 18752 Grade C, SAE 100R19 and ISO 11237 R19. Allows for tighter minimum bend radius, increased working pressure and improved impulse cycles than industry standards. Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms.
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +121 C / +250 F |
| UOM | EA |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 4000 psi / 275.8 bar |
| Min burst pressure | 16000 psi / 1103.2 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.375 in / 9.5 mm |
| Hose OD | 0.7 in / 17.8 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Polychloroprene (Neoprene) – Type A |
| Cover type | Standard |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 2.5 in / 114.3 mm |
| SAE specs & DOT | 100R19 |
| Meets MSHA 2G | YES |
| Second Name | 46574099 |
| Product line | M4KH Hydraulic Hose |
