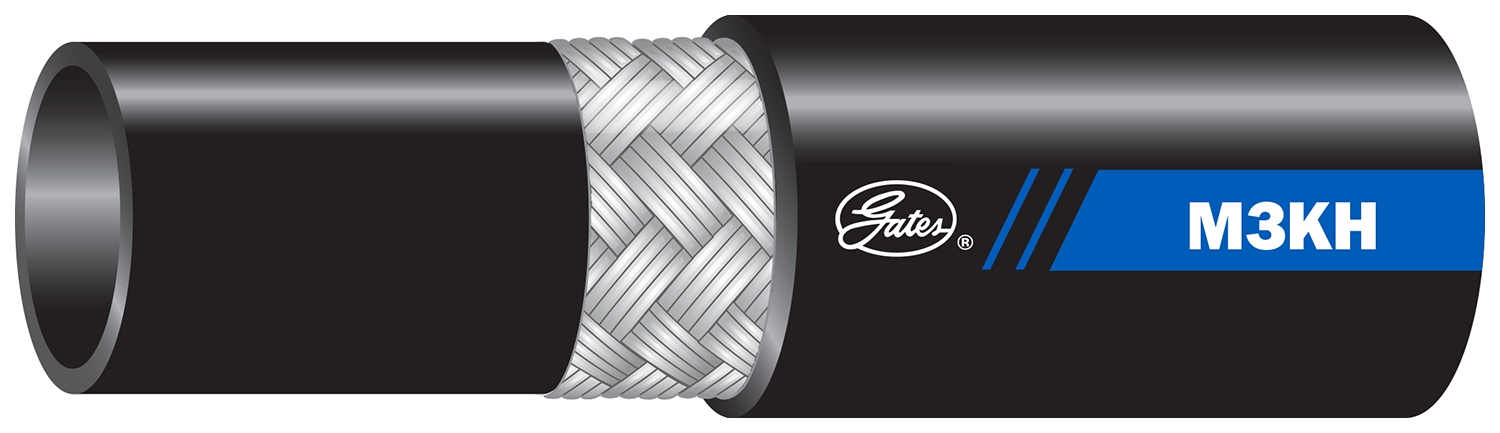

Part Number: 46572696
Recommended for high-pressure hydraulic oil line applications Global M3KH hose is easy to route and install in extremely tight areas. M3KH hose has smaller exterior dimensions and signifcantly tighter bend radius than other SAE 100R1 and 100R2 hose. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
Recommended for high-pressure hydraulic oil line applications Global M3KH hose is easy to route and install in extremely tight areas. M3KH hose has smaller exterior dimensions and signifcantly tighter bend radius than other SAE 100R1 and 100R2 hose. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids.
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +121 C / +250 F |
| Min order quantity | 330 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 1-braid, wire |
| Dynamic WP | 3250 psi / 224.1 bar |
| Min burst pressure | 13000 psi / 896.3 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.375 in / 9.5 mm |
| Hose OD | 0.65 in / 16.5 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Polychloroprene (Neoprene) – Type A |
| Cover type | Standard |
| Cover color | Black |
| Length | 330 ft / 101 m |
| Min bend radius | 2.5 in / 101.6 mm |
| SAE specs & DOT | 100R17 |
| Meets MSHA 2G | YES |
| Second Name | 46572696 |
| Product line | M3KH Hydraulic Hose |
