Description
RLA hose is recommended for low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.
Gates

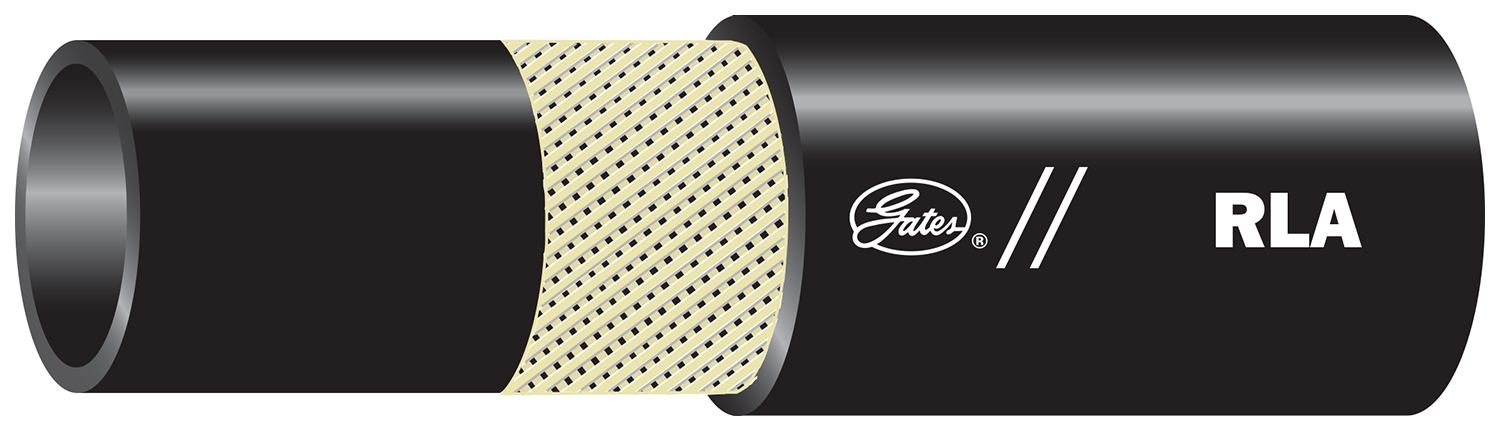

Gates | 32845308. 8RLA-30R2 XREEL. RLA Hydraulic Hose
32845308
Part Number: 32845308
RLA hose is recommended for low-pressure hydraulic oil return, general purpose water, glycol antifreeze solutions, diesel fuel, gasoline or air.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash Size | 8 |
| Maximum Temperature | +100 C / +212 F |
| Minimum Order Quantity | 550 |
| UOM | FT |
| Hose Pressure | Variable Pressure-Low |
| Reinforcement | 1-braid, textile |
| Dynamic WP | 200 psi / 13.8 bar |
| Min burst pressure | 800 psi / 55.2 bar |
| Minimum Temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | .81 in / 20.6 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover Material(s) | Modified Nitrile – Type C2 |
| Cover Type | Standard |
| Cover Color | Black |
| Length | 550 ft / 168 m |
| Min bend radius | 5 in / 127 mm |
| Vacuum (Hg) | 20 in / 508 mm |
| SAE specs & DOT | 30R2 Type 1, 30R2 Type 2 |
| Meets MSHA 2G | YES |
| Second Name | 32845308 |
| Product Line | RLA Hydraulic Hose |
