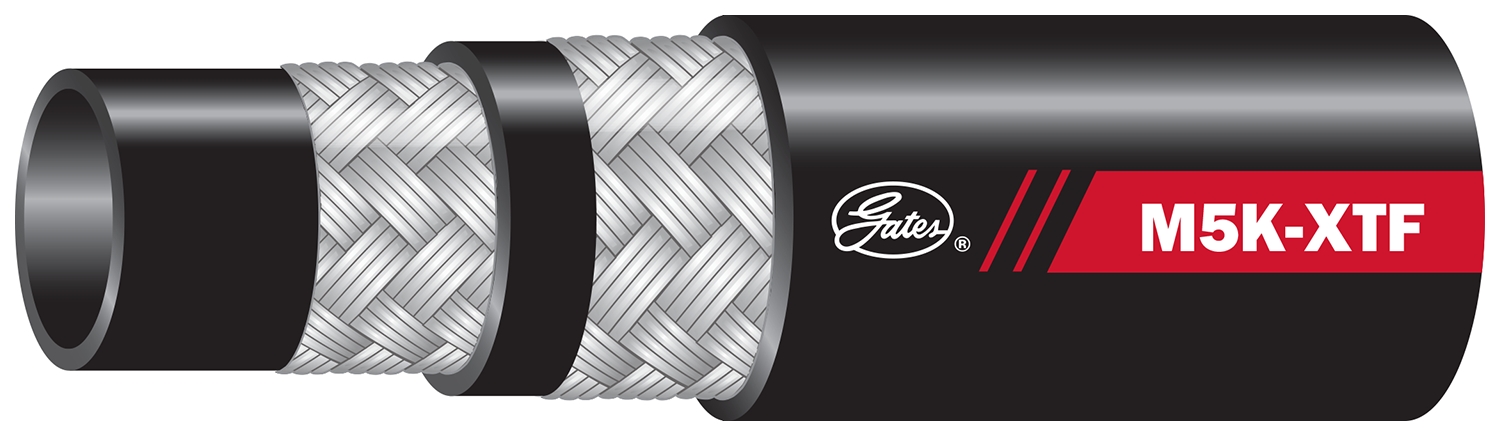

Part Number: 46578007
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of EN 857 2SC and ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4, -6, -8).
Recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Meets or exceeds requirements of EN 857 2SC and ISO 18752 Grade B. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4, -6, -8).
| Manufacturer | Gates |
|---|---|
| Dash size | 4 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 440 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 5000 psi / 344.7 bar |
| Min burst pressure | 20000 psi / 1379 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.25 in / 6.4 mm |
| Hose OD | 0.55 in / 14 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | XtraTuff |
| Cover type | XtraTuff |
| Cover color | Black |
| Length | 440 ft / 134 m |
| Min bend radius | 2 in / 139.7 mm |
| Meets MSHA 2G | YES |
| Second Name | 46578007 |
| Product line | M5K Hydraulic Hose |
