Part Number: 45040963
For use with petroleum and water base hydraulic fluids in suction lines or in low–pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV–GL with use of HeatGuard® high temp sleeve.
For use with petroleum and water base hydraulic fluids in suction lines or in low–pressure return lines. Meets or exceeds requirements of SAE 100R4. Uses half the bend radius of SAE 100R4. Meets marine ABS and DNV–GL with use of HeatGuard® high temp sleeve.
| Manufacturer | Gates |
|---|---|
| Dash size | 20 |
| Max temperature | +135 C / +275 F |
| UOM | EA |
| Hose pressure | Variable Pressure-Low |
| Reinforcement | 2-spiral, textile, helical wire |
| Dynamic WP | 250 psi / 17.2 bar |
| Min burst pressure | 1000 psi / 68.9 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1.25 in / 31.8 mm |
| Hose OD | 1.76 in / 44.7 mm |
| Tube material | Nitrile – Type C, High Temperature Resistant |
| Cover material | Polychloroprene (Neoprene) – Type A |
| Cover type | Standard |
| Cover color | Black |
| Length | 25 ft / 8 m |
| Min bend radius | 4 in / 635 mm |
| Vacuum (Hg) | 25 in / 635 mm |
| SAE specs & DOT | 100R4 |
| Meets MSHA 2G | YES |
| Second Name | 45040963 |

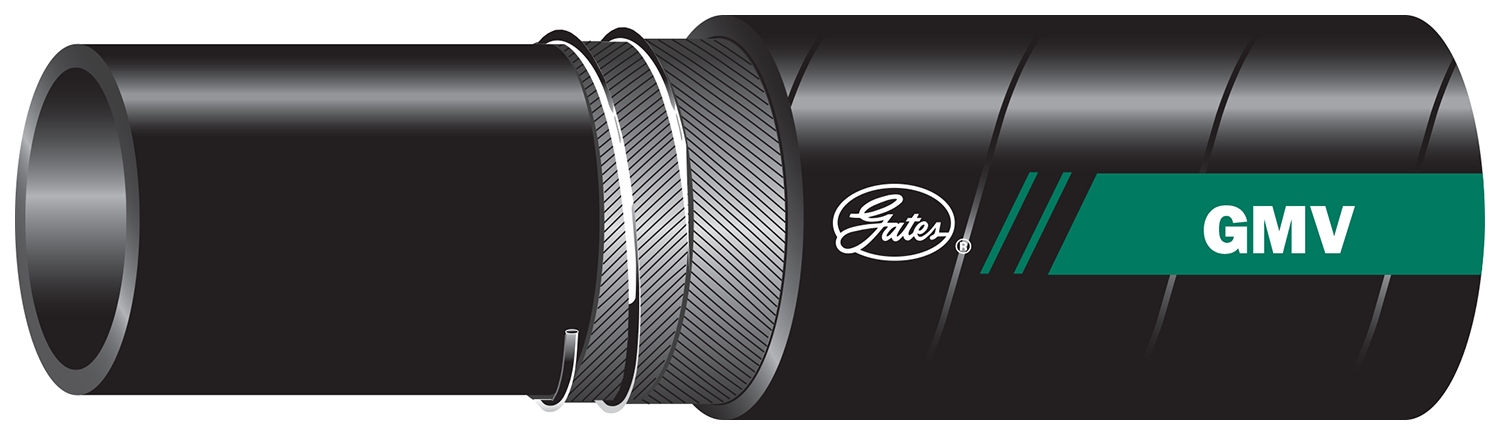

| Product line | GMV Global MegaVac® Return Line & Suction Hose |
