Description
RFS hose is recommended for low-pressure powder fre suppressant applications in mining, forestry and fire fighting equipment.
Gates

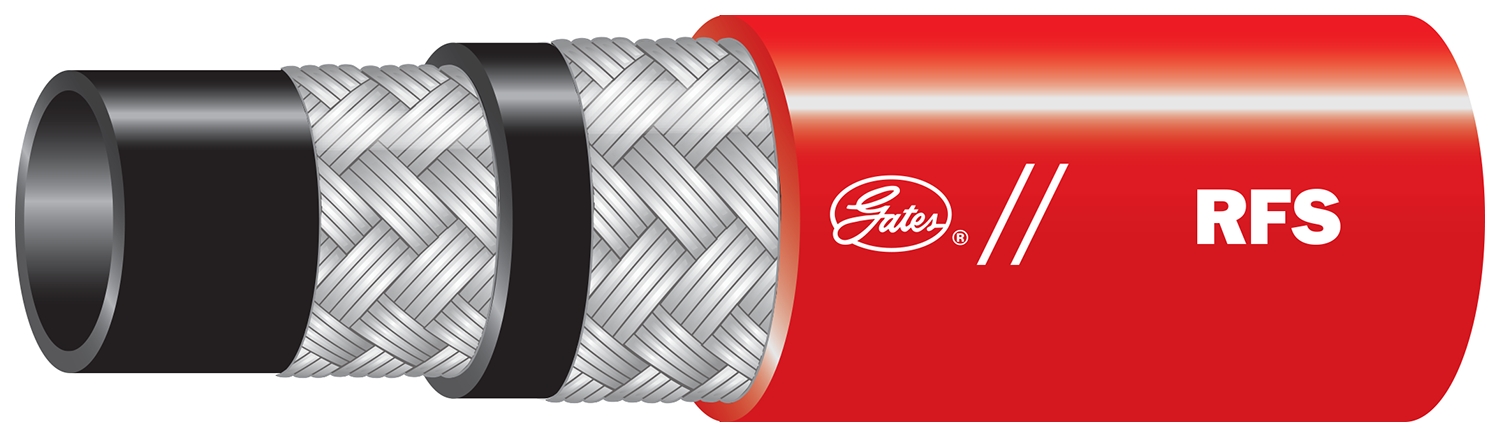

Gates | 46572155. 16RFS XREEL. RFS Hydraulic Hose
46572155
Part Number: 46572155
RFS hose is recommended for low-pressure powder fre suppressant applications in mining, forestry and fire fighting equipment.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 16 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 165 |
| UOM | FT |
| Hose pressure | Variable Pressure-High |
| Reinforcement | 1-braid, wire |
| Dynamic WP | 1000 psi / 68.9 bar |
| Min burst pressure | 4000 psi / 275.8 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1 in / 25.4 mm |
| Hose OD | 1.41 in / 35.8 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover material | Modified Nitrile – Type C2 |
| Cover type | Standard |
| Cover color | Red |
| Length | 165 ft / 50 m |
| Min bend radius | 12 in / 86.4 mm |
| SAE specs & DOT | 100R1 |
| Meets MSHA 2G | YES |
| Second Name | 46572155 |
| Product line | RFS Hydraulic Hose |
