Part Number: 46574474

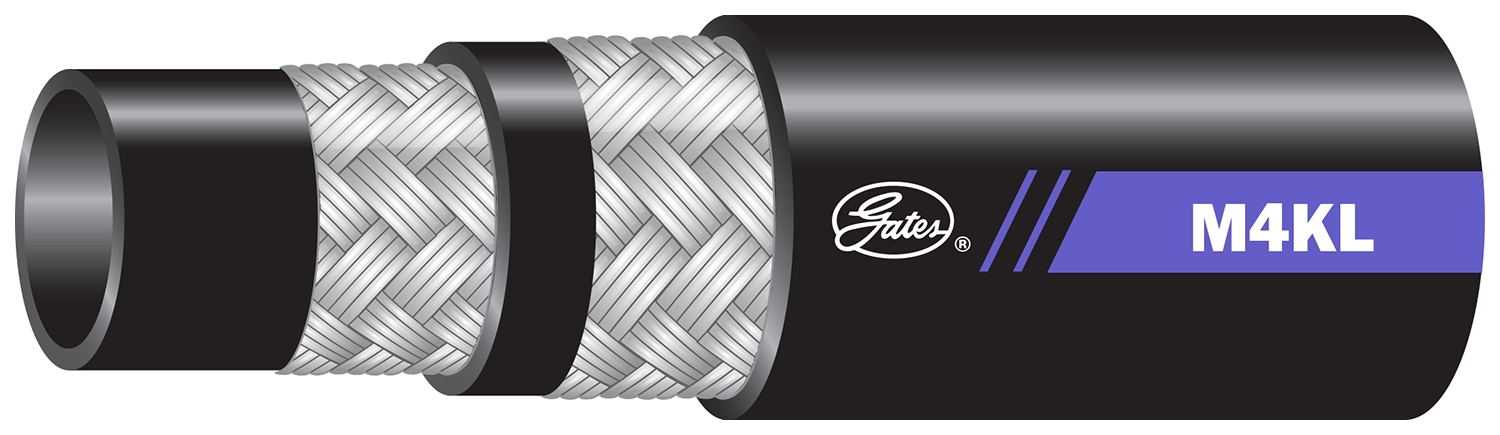

Global M4KL Mega400™ PolarFlex® Low-Temp hose is recommended for extremely low temperature high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds SAE 100R19 and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).
Global M4KL Mega400™ PolarFlex® Low-Temp hose is recommended for extremely low temperature high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds SAE 100R19 and ISO11237 R19. Recommended Couplings: GlobalSpiral™ Couplings, MegaCrimp® Couplings, Stainless Steel B Couplings (-4 through -8), Stainless Steel S Couplings (-12 and -16).
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 220 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 4000 psi / 275.8 bar |
| Min burst pressure | 16000 psi / 1103.2 bar |
| Minimum temperature | -57 C / -70 F |
| Hose ID | 0.625 in / 15.9 mm |
| Hose OD | 0.98 in / 24.9 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Polychloroprene (Neoprene) – Type A |
| Cover type | Standard |
| Cover color | Black |
| Length | 220 ft / 67 m |
| Min bend radius | 4 in / 45.7 mm |
| SAE specs & DOT | 100R19 |
| Meets MSHA 2G | YES |
| Second Name | 46574474 |
| Product line | M4KL Hydraulic Hose |
