Donaldson | P760155. MUFFLER, ROUND STYLE 6

Donaldson

Donaldson | P760155. MUFFLER, ROUND STYLE 6

Part Number: P760155

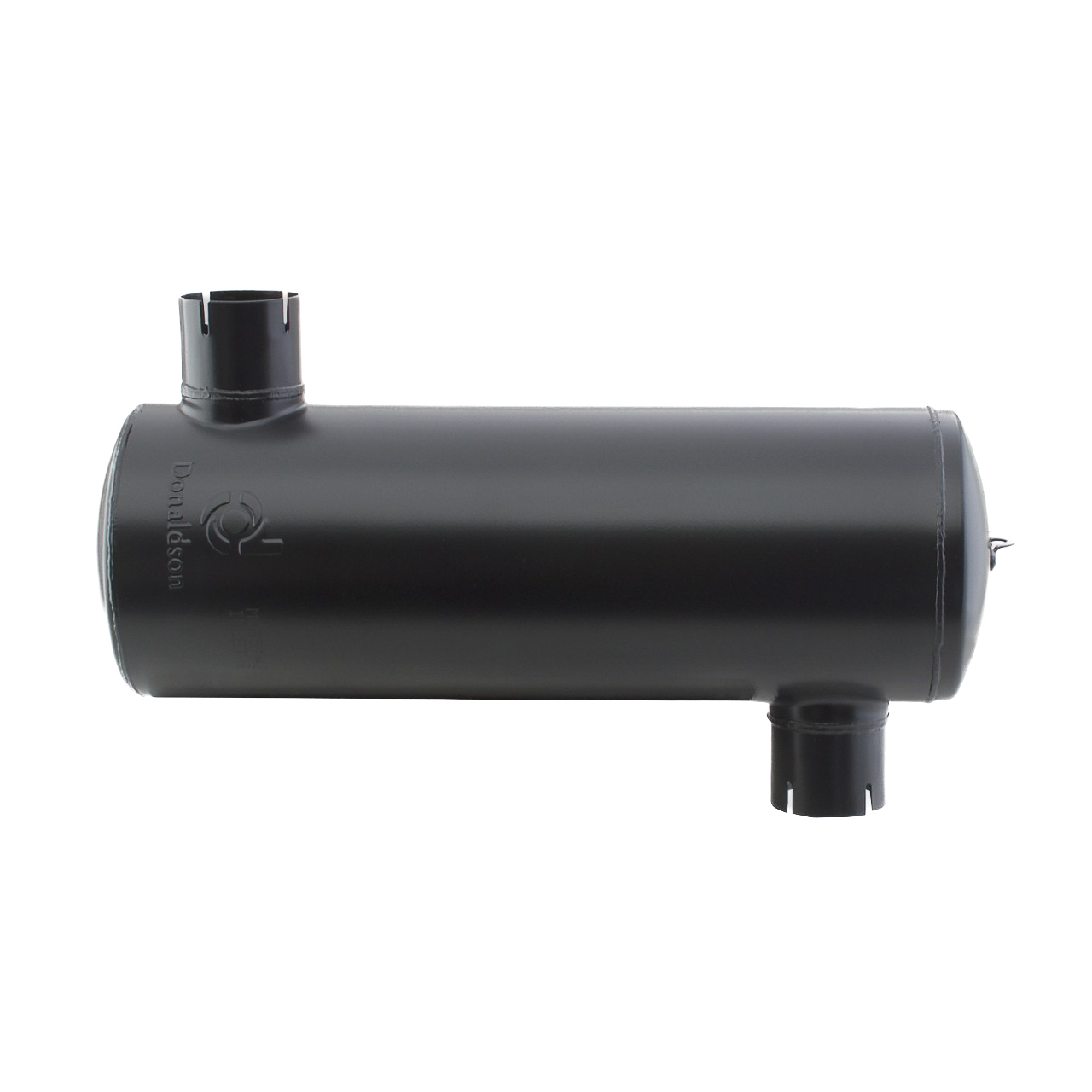

Muffler, Round Style 6

SKU: P760155 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 6

Additional information

Attenuation hr	18 DBA
Attenuation lr	12 DBA
Body diameter maximum	167.9 MM / 6.61 IN
Body length	444.5 MM / 17.5 IN
Filter style	Style 6
Inlet diameter	63.88 MM / 2.51 IN
Manufacturer	Donaldson
Outlet diameter	63.88 MM / 2.51 IN
Overall length	503.9 MM / 19.84 IN
Rated flow hr	17.3 CMM
Rated flow lr	12.5 CMM
Rated flow mr	17.3 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	12:00
