Donaldson | P560526. MUFFLER, ROUND STYLE 5

Donaldson

Donaldson | P560526. MUFFLER, ROUND STYLE 5

Part Number: P560526

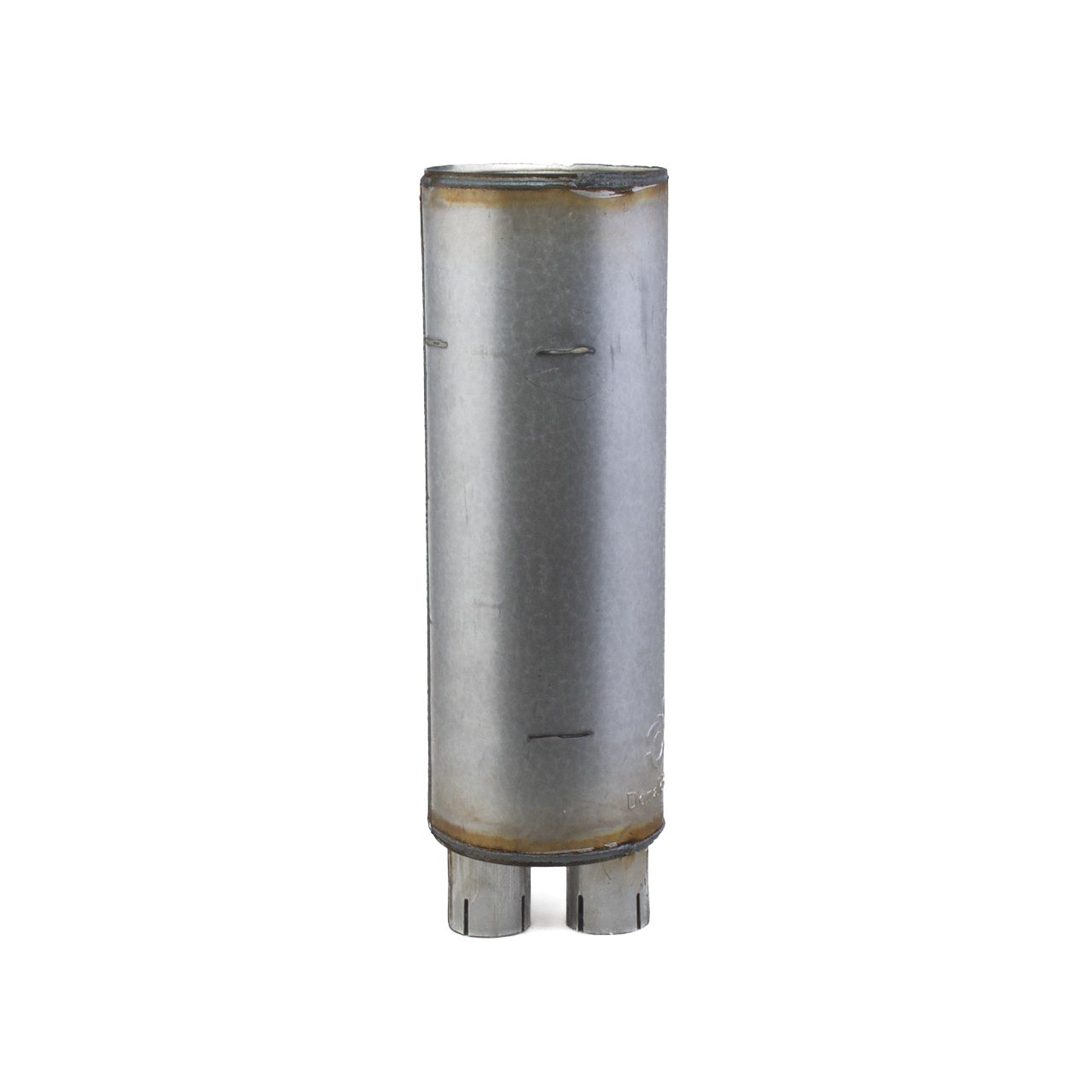

Muffler, Round Style 5

SKU: P560526 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 5

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	151.6 MM / 5.97 IN
Body length	416.6 MM / 16.4 IN
Filter style	Style 5
Inlet diameter	51.31 MM / 2.02 IN
Manufacturer	Donaldson
Outlet diameter	51.31 MM / 2.02 IN
Overall length	492.8 MM / 19.4 IN
Rated flow hr	14.5 CMM
Rated flow lr	8.4 CMM
Rated flow mr	11.9 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	12:00
