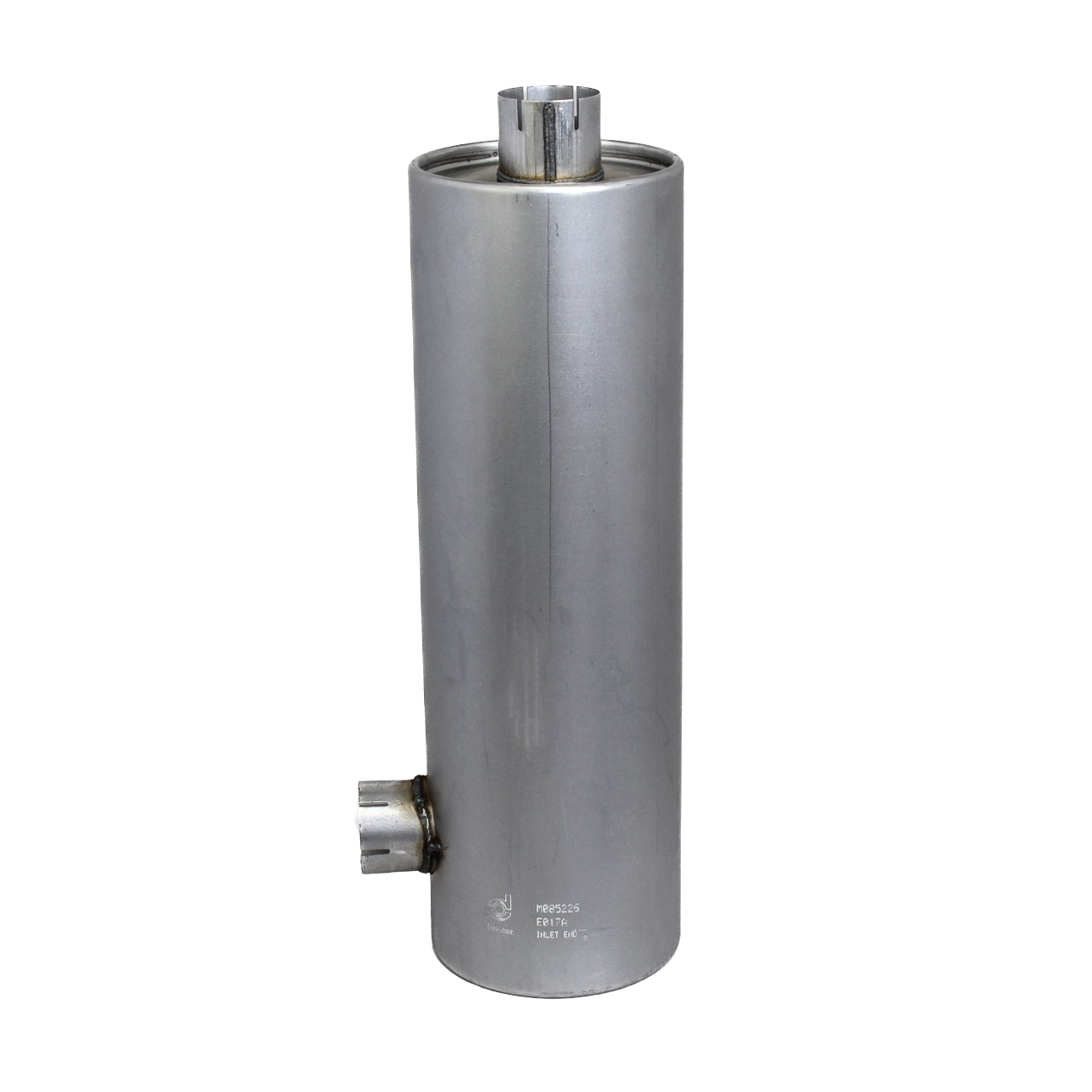

Donaldson | P557841. MUFFLER, ROUND STYLE 3 WRAPPED

Donaldson

Donaldson | P557841. MUFFLER, ROUND STYLE 3 WRAPPED

Part Number: P557841

Muffler, Round Style 3 Wrapped

SKU: P557841 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 3 Wrapped

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	223 MM / 8.78 IN
Body length	688.85 MM / 27.12 IN
Filter style	Style 3
Filter type	Wrapped
Inlet diameter	76.66 MM / 3.02 IN
Manufacturer	Donaldson
Outlet diameter	76.66 MM / 3.02 IN
Overall length	750.82 MM / 29.56 IN
Rated flow hr	22.7 CMM
Rated flow lr	13.2 CMM
Rated flow mr	18.6 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	6:00
