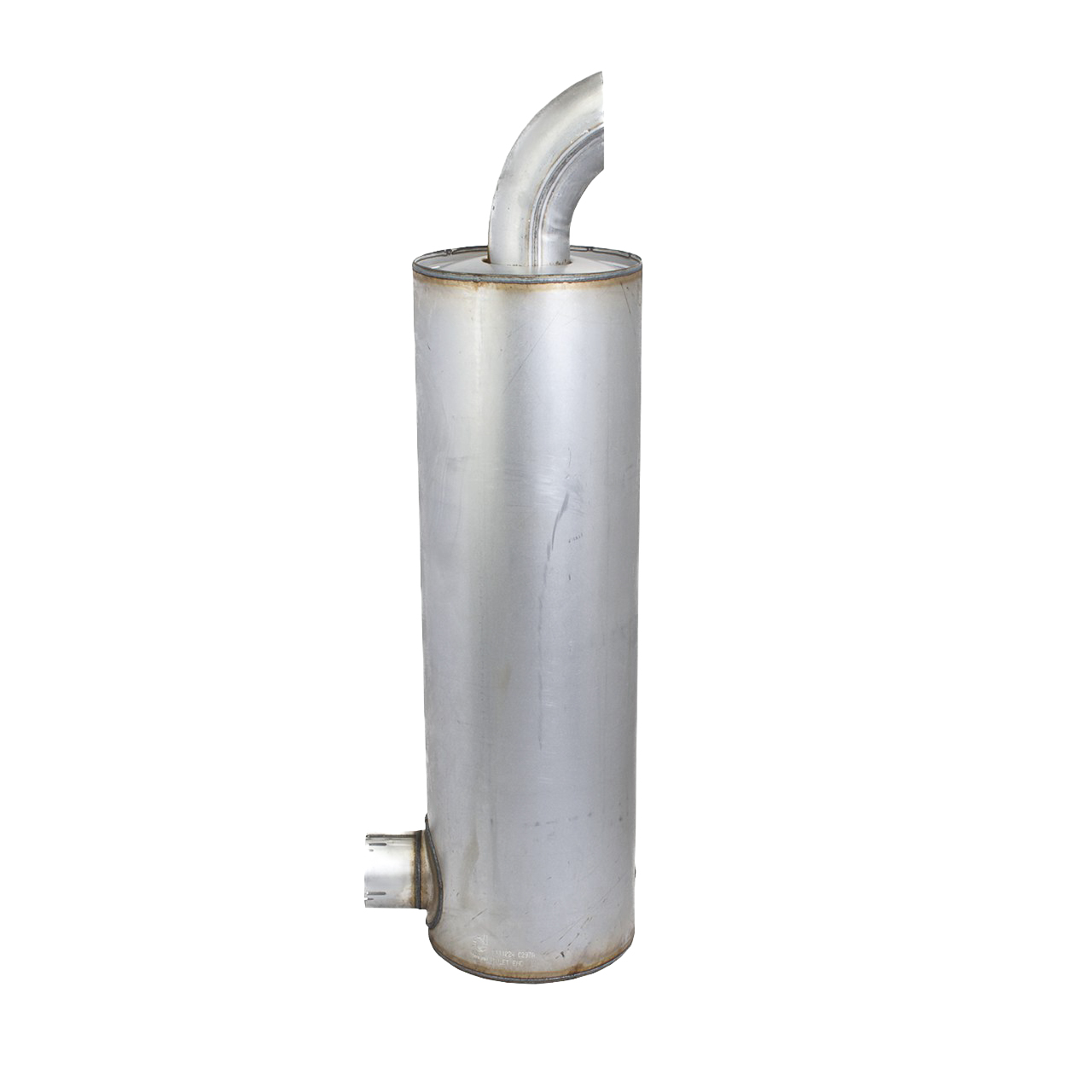

Donaldson | P557380. MUFFLER, ROUND STYLE 3

Donaldson

Donaldson | P557380. MUFFLER, ROUND STYLE 3

Part Number: P557380

Muffler, Round Style 3

SKU: P557380 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 3

Additional information

Attenuation hr	19 DBA
Attenuation lr	13 DBA
Body diameter maximum	281.4 MM / 11.08 IN
Body length	914.4 MM / 36 IN
Filter style	Style 3
Inlet diameter	101.6 MM / 4 IN
Manufacturer	Donaldson
Outlet diameter	101.6 MM / 4 IN
Overall length	1132.6 MM / 44.59 IN
Rated flow hr	48.2 CMM
Rated flow lr	27.8 CMM
Rated flow mr	39.4 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	12:00
Outlet clock position	6:00
