Part Number: P555603

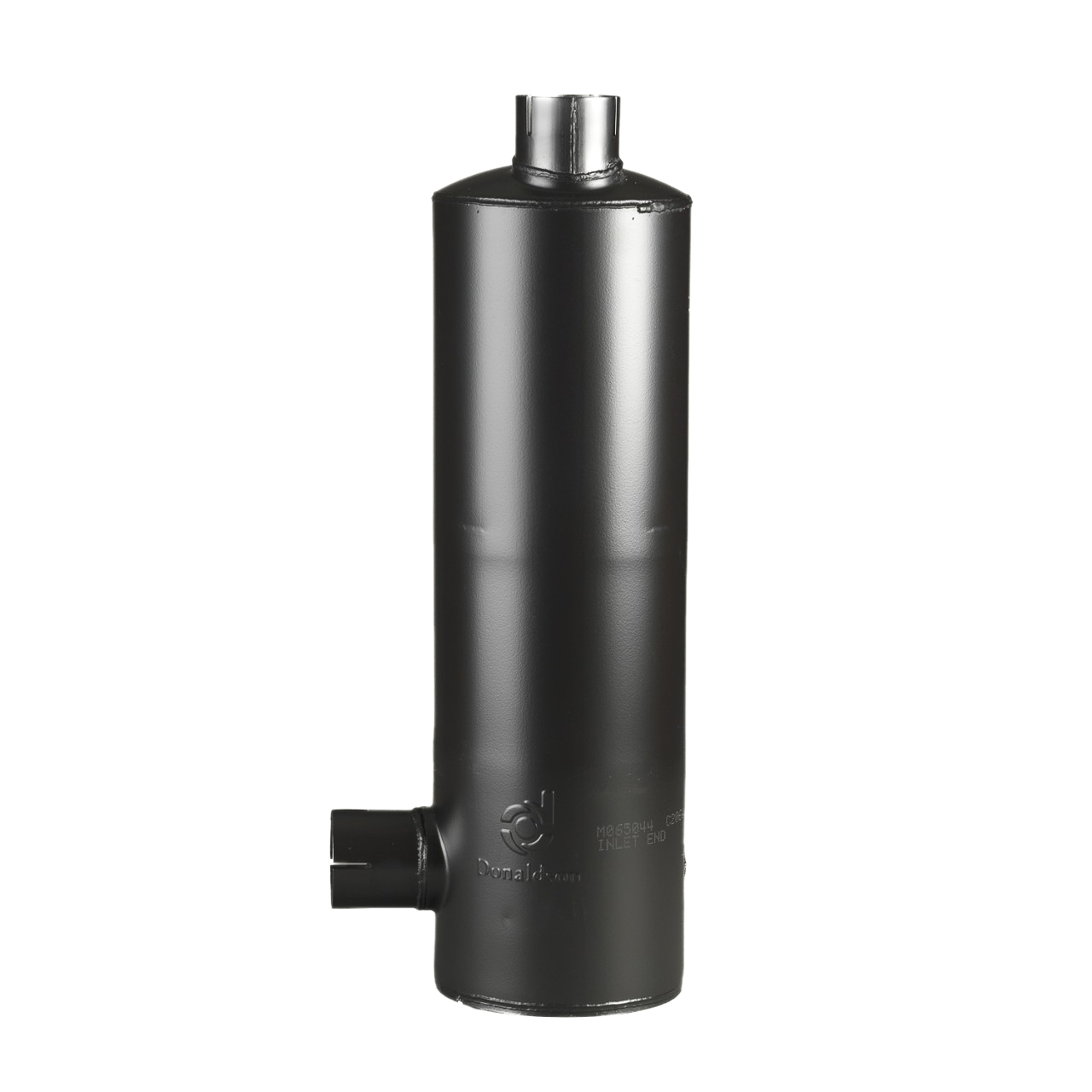

Muffler, Round Style 3

SKU: P555603 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 3

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	168 MM / 6.61 IN
Body length	524.13 MM / 20.63 IN
Filter style	Style 3
Inlet diameter	63.88 MM / 2.51 IN
Manufacturer	Donaldson
Outlet diameter	63.88 MM / 2.51 IN
Overall length	596.9 MM / 23.5 IN
Rated flow hr	16 CMM
Rated flow lr	9.2 CMM
Rated flow mr	13 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	9:00
