Description

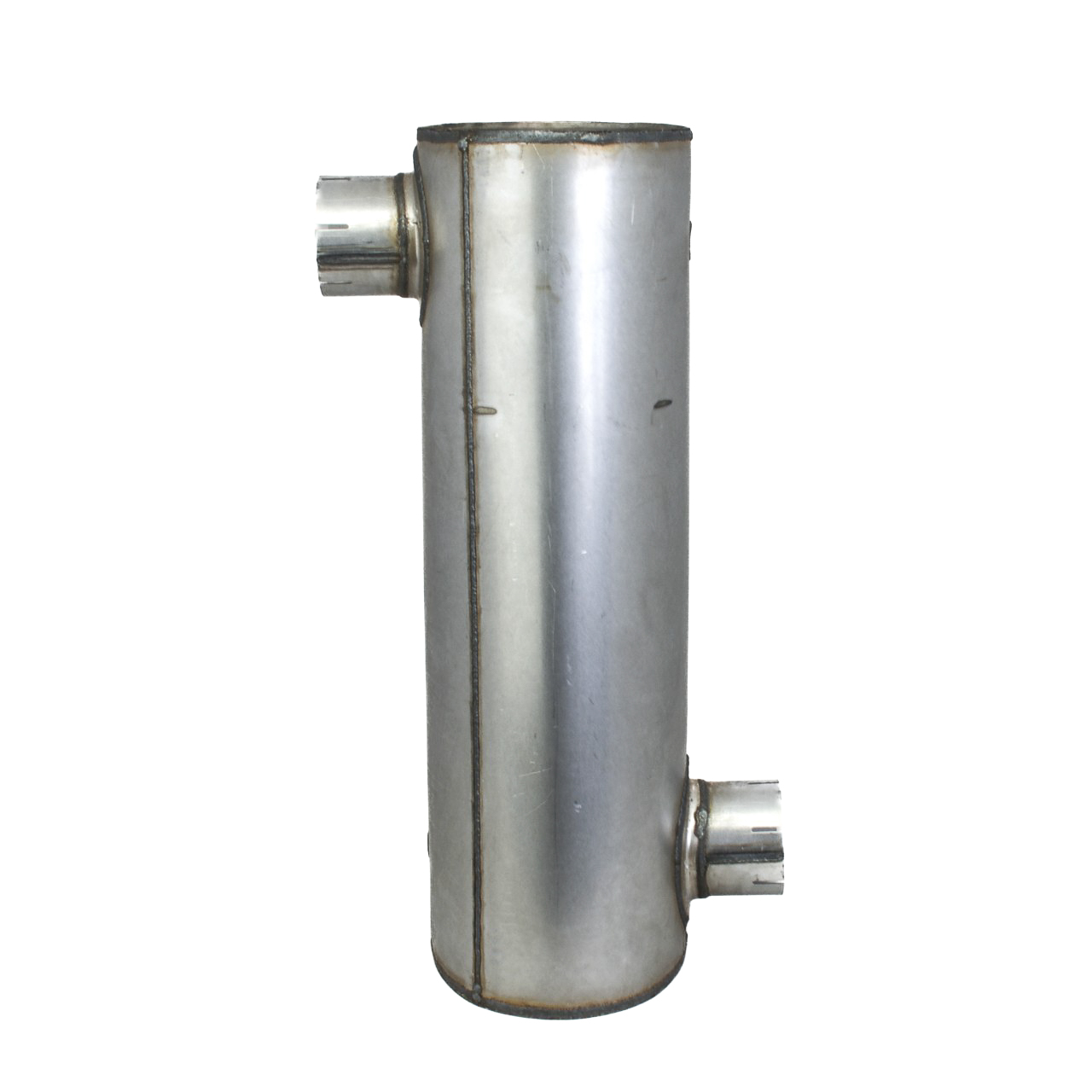

Muffler, Oval Style 6
Donaldson
P174791
Additional information
| Attenuation hr | 20 DBA |
|---|---|
| Attenuation lr | 15 DBA |
| Body diameter maximum | 292 MM / 11.5 IN |
| Body diameter minimum | 209.55 MM / 8.25 IN |
| Body length | 647.7 MM / 25.5 IN |
| Filter style | Style 6 |
| Inlet diameter | 89.28 MM / 3.51 IN |
| Manufacturer | Donaldson |
| Outlet diameter | 89.28 MM / 3.51 IN |
| Overall length | 660.4 MM / 26 IN |
| Rated flow hr | 32.9 CMM |
| Rated flow lr | 19 CMM |
| Rated flow mr | 26.9 CMM |
| Back pressure low range | 25 MM HG / 0.98 IN HG |
| Back pressure mid range | 51 MM HG / 2.01 IN HG |
| Back pressure high range | 76 MM HG / 2.99 IN HG |
| Inlet clock position | 6:00 |
| Outlet clock position | 12:00 |
