Donaldson | P174301. MUFFLER, OVAL STYLE 3

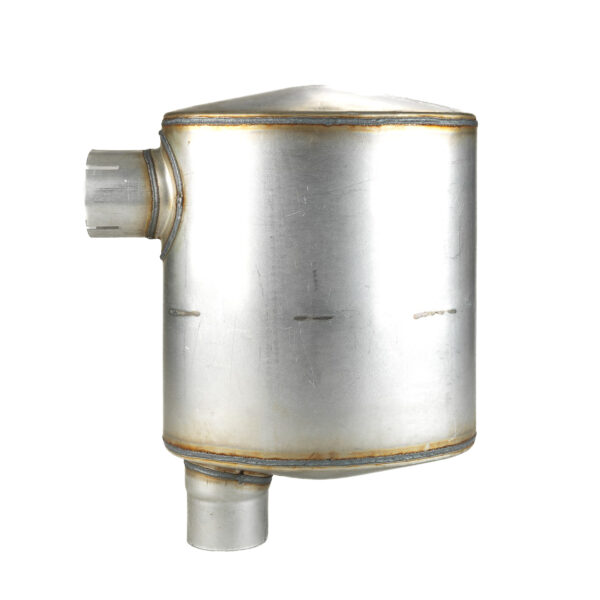

Part Number: P174301

Muffler, Oval Style 3

SKU: P174301 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 3

Additional information

Attenuation hr	18 DBA
Attenuation lr	12 DBA
Body diameter maximum	381 MM / 15 IN
Body diameter minimum	254 MM / 10 IN
Body length	381 MM / 15 IN
Filter style	Style 3
Inlet diameter	102 MM / 4.02 IN
Manufacturer	Donaldson
Outlet diameter	98 MM / 3.86 IN
Overall length	547.88 MM / 21.57 IN
Rated flow hr	64.1 CMM
Rated flow lr	37 CMM
Rated flow mr	52.3 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Outlet clock position	9:00
