Donaldson | P174293. MUFFLER, OVAL STYLE 2 WRAPPED

Donaldson

Donaldson | P174293. MUFFLER, OVAL STYLE 2 WRAPPED

Part Number: P174293

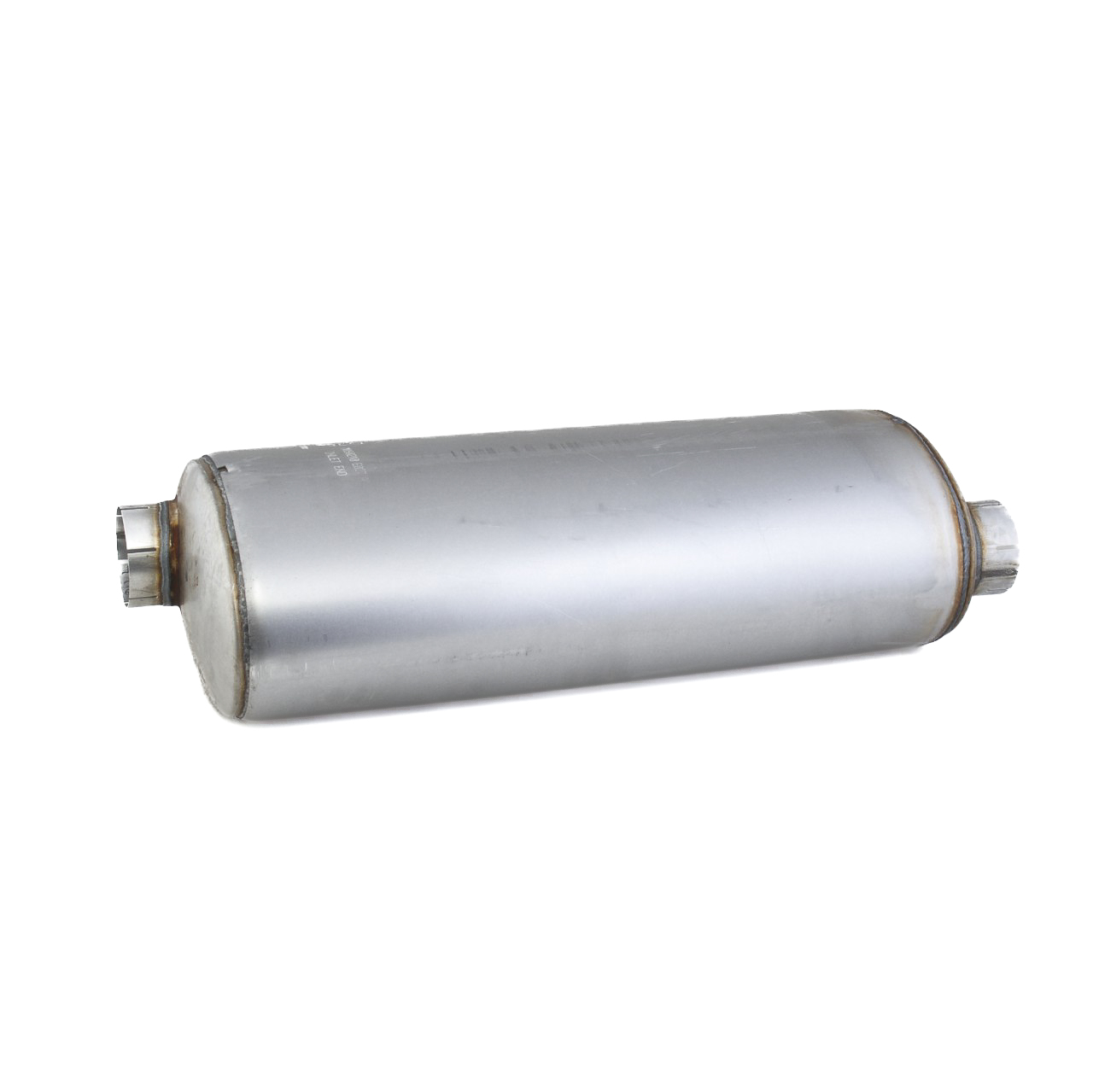

Muffler, Oval Style 2 Wrapped

SKU: P174293 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2 Wrapped

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	300 MM / 11.81 IN
Body diameter minimum	217.4 MM / 8.56 IN
Body length	660.4 MM / 26 IN
Filter style	Style 2
Filter type	Wrapped
Inlet diameter	89.28 MM / 3.51 IN
Manufacturer	Donaldson
Outlet diameter	89.28 MM / 3.51 IN
Overall length	819.2 MM / 32.25 IN
Rated flow hr	37.5 CMM
Rated flow lr	21.6 CMM
Rated flow mr	30.6 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
