Donaldson | P174292. MUFFLER, OVAL STYLE 2 WRAPPED

Part Number: P174292

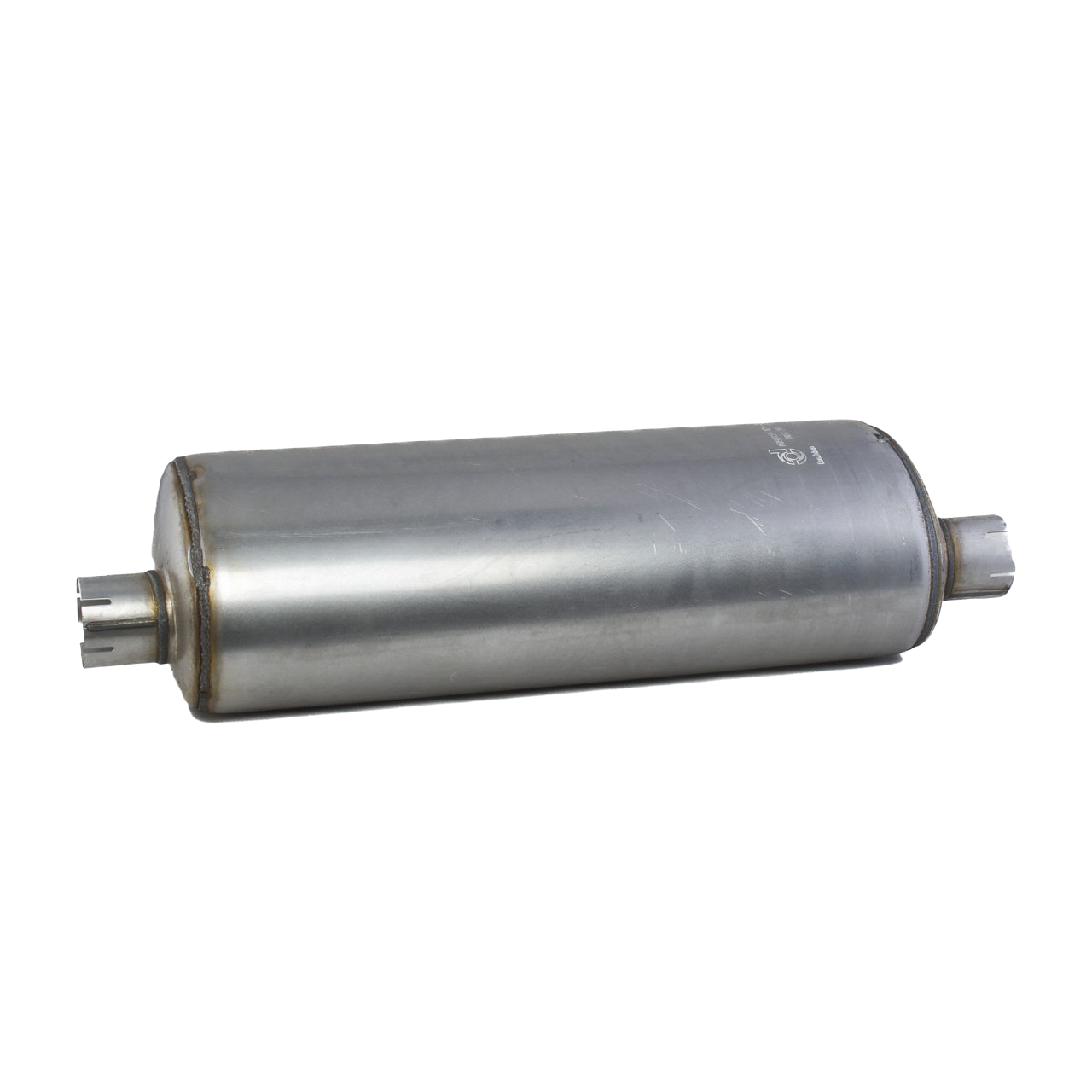

Muffler, Oval Style 2 Wrapped

SKU: P174292 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2 Wrapped

Additional information

Attenuation hr	25 DBA
Attenuation lr	19 DBA
Body diameter maximum	299.97 MM / 11.81 IN
Body diameter minimum	217.42 MM / 8.56 IN
Body length	660.4 MM / 26 IN
Filter style	Style 2
Filter type	Wrapped
Inlet diameter	76.66 MM / 3.02 IN
Manufacturer	Donaldson
Outlet diameter	76.66 MM / 3.02 IN
Overall length	857.25 MM / 33.75 IN
Rated flow hr	23.4 CMM
Rated flow lr	13.5 CMM
Rated flow mr	19.1 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	3:00
