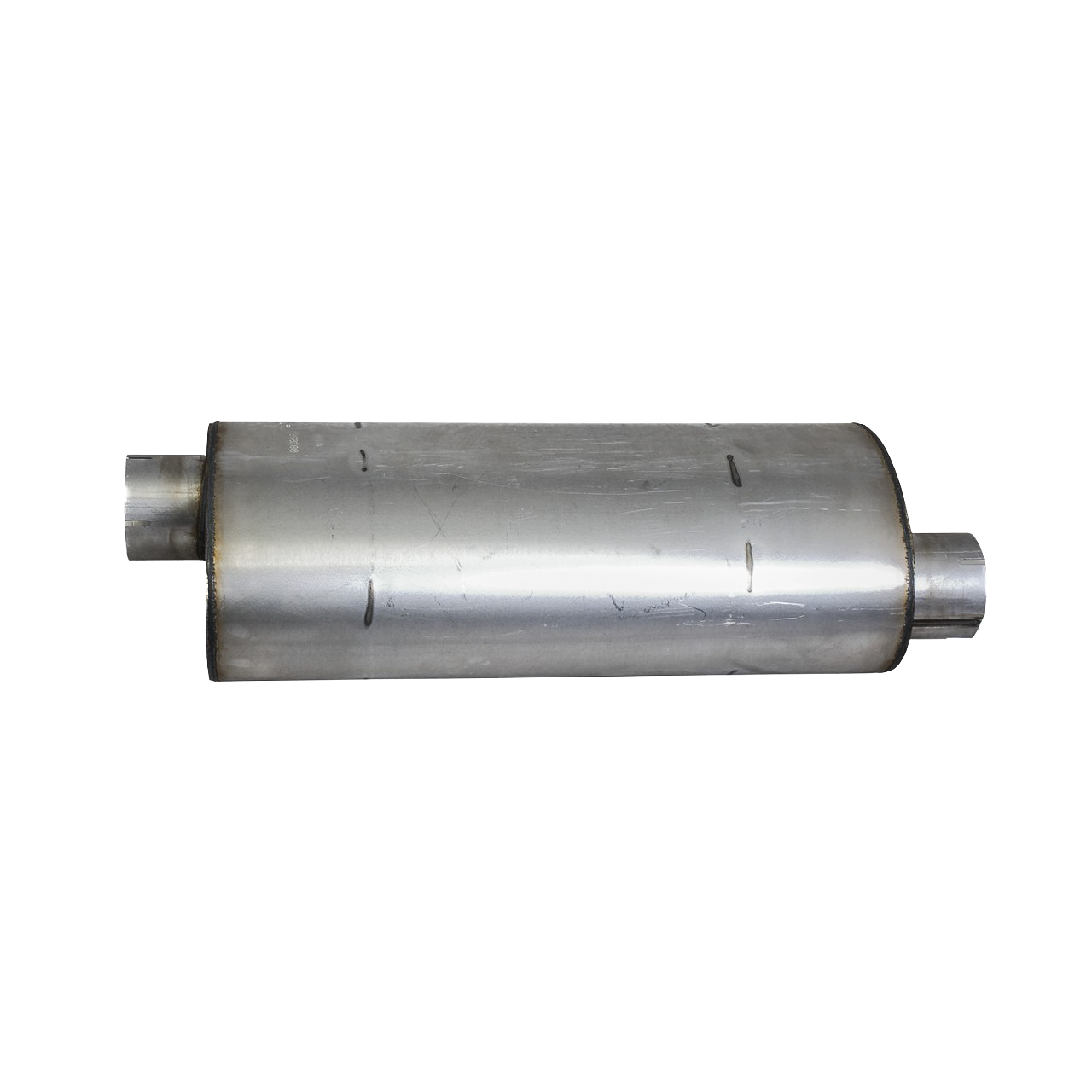

Donaldson | P173597. MUFFLER, OVAL STYLE 2

Donaldson

Donaldson | P173597. MUFFLER, OVAL STYLE 2

Part Number: P173597

Muffler, Oval Style 2

SKU: P173597 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 2

Additional information

Attenuation hr	18 DBA
Attenuation lr	12 DBA
Body diameter maximum	292 MM / 11.5 IN
Body diameter minimum	209.6 MM / 8.25 IN
Body length	660.4 MM / 26 IN
Filter style	Style 2
Inlet diameter	102.11 MM / 4.02 IN
Manufacturer	Donaldson
Outlet diameter	102.11 MM / 4.02 IN
Overall length	89.15 MM / 3.51 IN
Rated flow hr	48.6 CMM
Rated flow lr	28.1 CMM
Rated flow mr	39.7 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	3:00
Outlet clock position	9:00
