Description
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present.
Gates

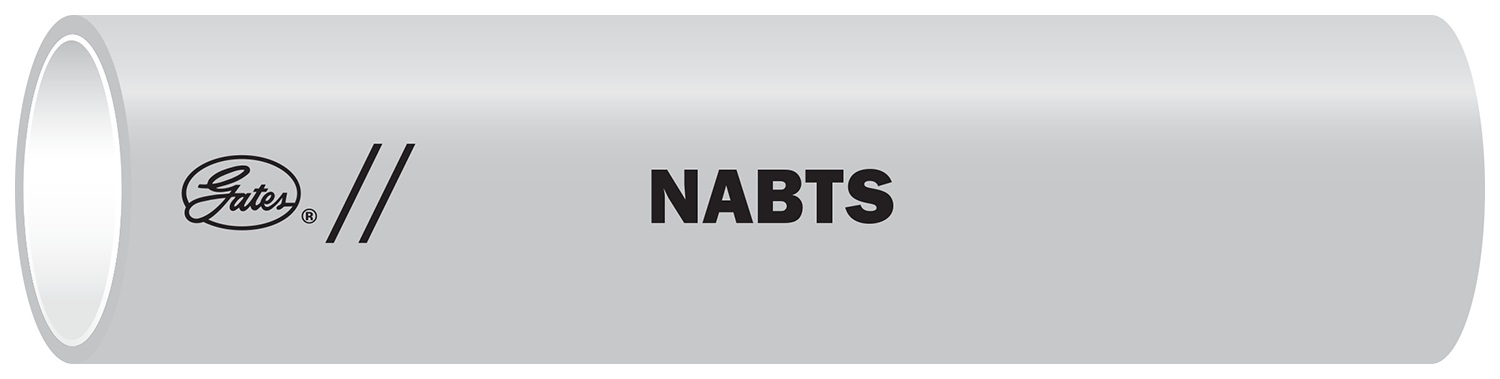

Gates | 43270114. 8NABTS XREEL. Air Brake Nylon Tubing
43270114
Part Number: 43270114
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 8 |
| Max temperature | +93 C / +200 F |
| UOM | FT |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | Nylon – Type B |
| Min burst pressure | 957 psi / 65.98 bar |
| Minimum temperature | -40 C / -40 F |
| Hose OD | .5 in / 12.7 mm |
| Tube material | Heat/Light Stabilized Seamless Extruded Nylon |
| Cover material | Nylon |
| Cover type | Not Applicable |
| Cover color | Silver |
| Length | 1000 ft / 304.8 m |
| Min bend radius | 2 in / 188 mm |
| SAE specs & DOT | J844, DOT FMVSS 106-74 |
| Second Name | 43270114 |
| Product line | Air Brake Nylon Tubing |
