Description
M500 hose is recommended for pilot lines, grease lines and pressure return lines with 500 psi or less pressure applications.
Gates

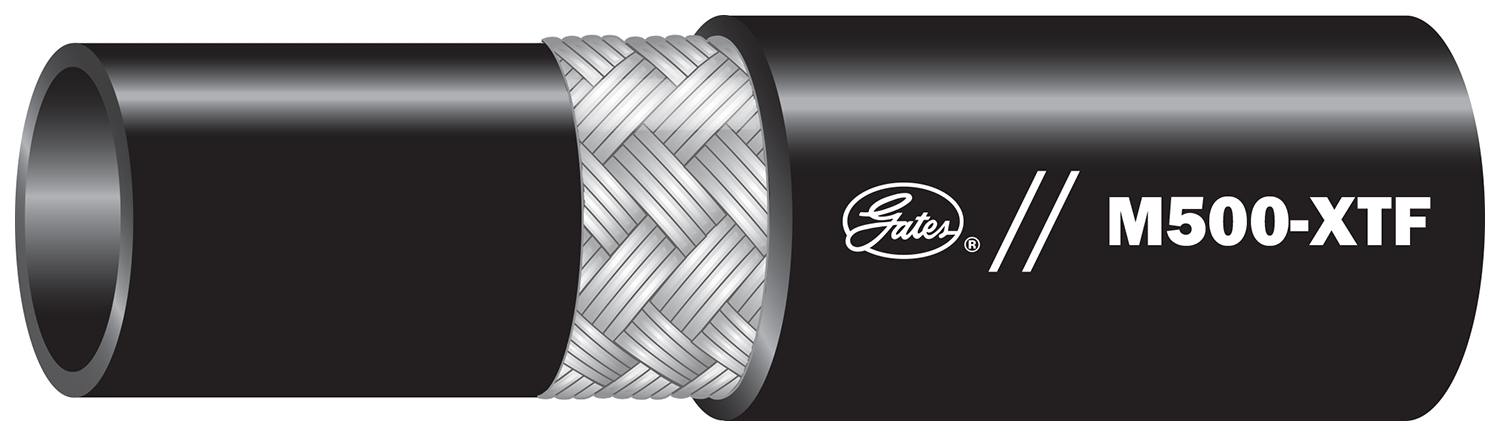

Gates | 46578035. 8M500-XTF XREEL. M500 Hydraulic Hose
46578035
Part Number: 46578035
M500 hose is recommended for pilot lines, grease lines and pressure return lines with 500 psi or less pressure applications.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 8 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 220 |
| UOM | FT |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | 1-braid, wire |
| Dynamic WP | 500 psi / 34.5 bar |
| Min burst pressure | 2000 psi / 137.9 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.76 in / 19.3 mm |
| Tube material | NBR, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | XtraTuff |
| Cover type | XtraTuff |
| Cover color | Black |
| Length | 220 ft / 67 m |
| Min bend radius | 3.5 in / 86.4 mm |
| Meets MSHA 2G | YES |
| Second Name | 46578035 |
| Product line | M500 Hydraulic Hose |
