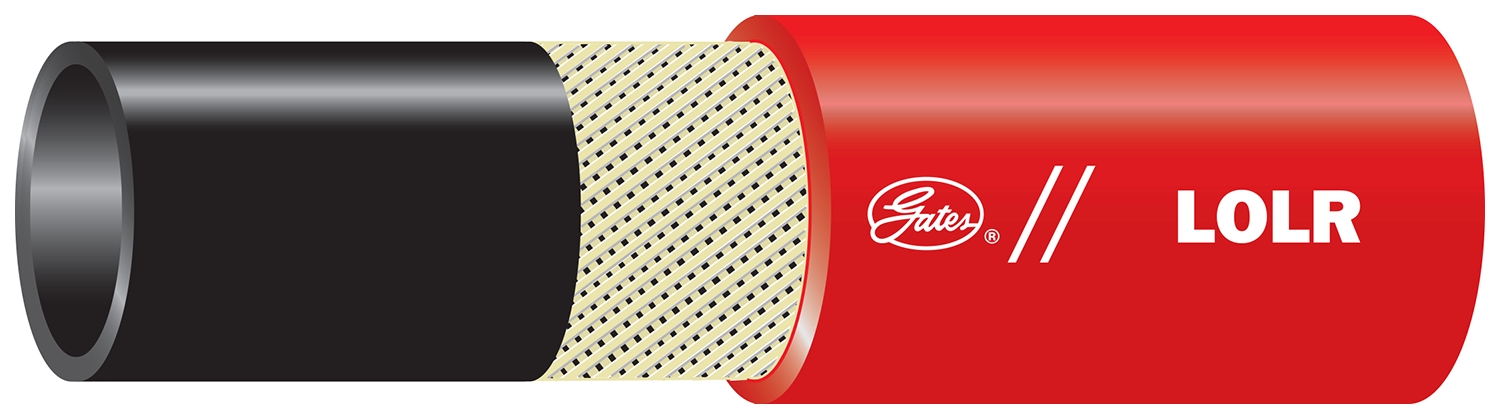

Part Number: 32842545
Recommended for petroleum–based hydraulic oils, water, glycol anti–freeze solutions, engine lubricating oils and air; Lock–On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
Recommended for petroleum–based hydraulic oils, water, glycol anti–freeze solutions, engine lubricating oils and air; Lock–On hose and couplings are NOT recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates H/C Product Application.
| Manufacturer | Gates |
|---|---|
| Dash size | 8 |
| Max temperature | +121 C / +250 F |
| Min order quantity | 300 |
| UOM | FT |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | 1-braid, textile |
| Dynamic WP | 300 psi / 20.7 bar |
| Min burst pressure | 1200 psi / 82.7 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.77 in / 19.6 mm |
| Tube material | Nitrile – Type C, Heat, Oil Resistant |
| Cover material | Modified Nitrile – Type C2 |
| Cover type | Standard |
| Cover color | Red |
| Length | 300 ft / 91 m |
| Min bend radius | 5 in / 114.3 mm |
| Vacuum (Hg) | 28 in / 711 mm |
| Second Name | 32842545 |
| Product line | LOL Plus Hydraulic Hose |
