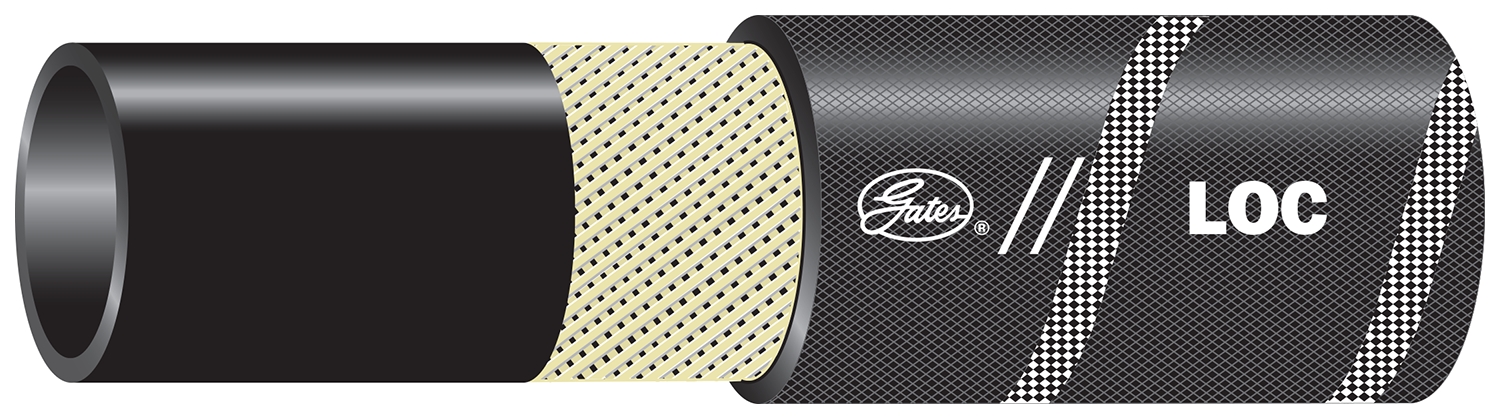

Part Number: 43194937
Gates LOC Lock-On Hose is ideal for petroleum-based hydraulic oils, glycol anti–freeze compounds, water, engine lubricating oils and air. Lock–On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings.
Gates LOC Lock-On Hose is ideal for petroleum-based hydraulic oils, glycol anti–freeze compounds, water, engine lubricating oils and air. Lock–On hose and couplings are NOT recommended for vibration or pressure surge applications, such as permanent piping in residential or commercial buildings.
| Manufacturer | Gates |
|---|---|
| Dash size | 8 |
| Max temperature | +121 C / +250 F |
| UOM | EA |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | 1-braid, textile |
| Dynamic WP | 300 psi / 20.7 bar |
| Min burst pressure | 1200 psi / 82.7 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.8 in / 20.3 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover material | Textile Braid Impregnated w/ Synthetic Rubber |
| Cover type | Standard |
| Cover color | Black |
| Length | 50 ft / 15 m |
| Min bend radius | 5 in / 101.6 mm |
| SAE specs & DOT | 30R2, 30R6, 30R7 |
| Second Name | 43194937 |
| Product line | LOC Hydraulic Hose |
