Part Number: 44720228
Recommended for petroleum, water-base and synthetic hydraulic fluids, TH7DL applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NCDL meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices.
Recommended for petroleum, water-base and synthetic hydraulic fluids, TH7DL applications include power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange color TH7NCDL meets SAE 100R7 non–conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius. Meets ANSI A92.2 for vehicle mounted aerial devices.
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +93 C / +200 F |
| UOM | EA |
| Hose pressure | Variable Pressure-Low |
| Reinforcement | 1-braid, polyester |
| Dynamic WP | 2250 psi / 155.1 bar |
| Min burst pressure | 9000 psi / 620.5 bar |
| Minimum temperature | -54 C / -65 F |
| Hose ID | 0.375 in / 9.5 mm |
| Hose OD | 0.64 in / 16.3 mm |
| Tube material | Nylon |
| Cover material | Urethane |
| Cover type | Standard |
| Cover color | Orange |
| Length | 50 ft / 15 m |
| Min bend radius | 2.75 in / 188 mm |
| SAE specs & DOT | 100R7 |
| Second Name | 44720228 |

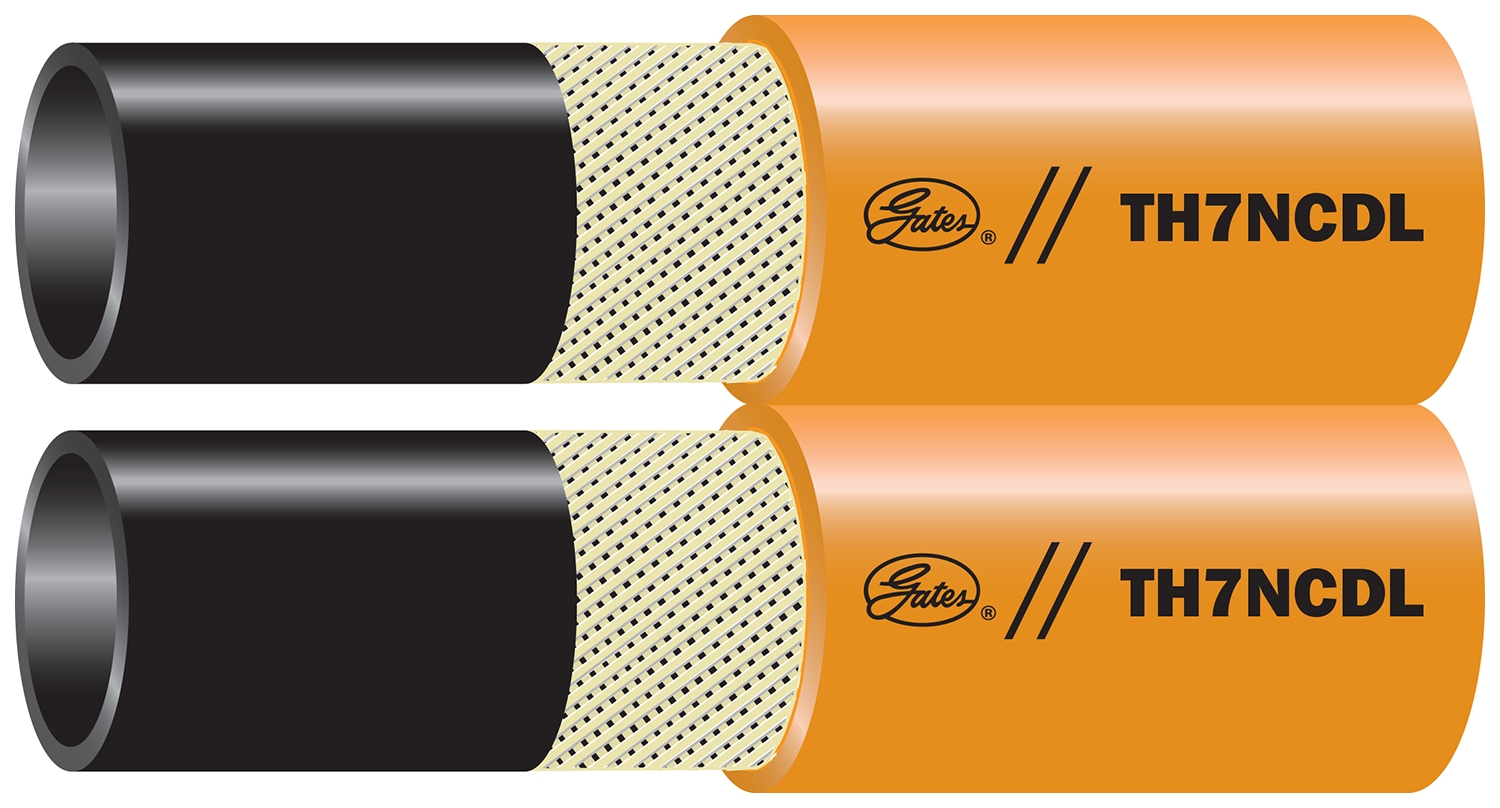

| Product line | TH7 Non-Conductive Dual Line Hydraulic Hose |
