Part Number: 44670008

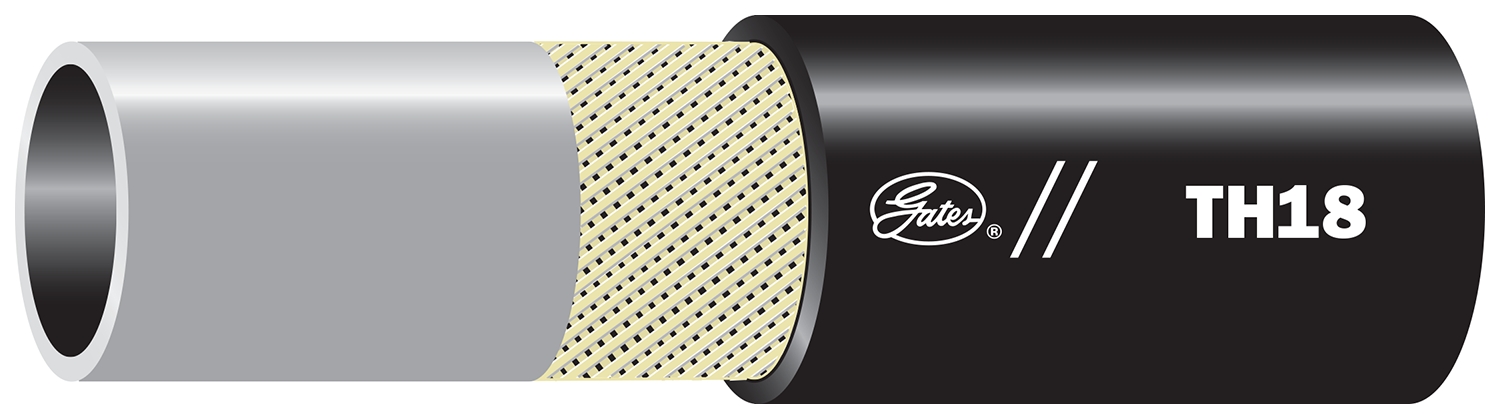

TH18 hose is suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. This hose is ideal for industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.
TH18 hose is suitable for petroleum or synthetic-based hydraulic fluids in hydraulic systems. This hose is ideal for industrial and agricultural applications exposed to low temperatures or cyclic and quick temperature changes. Remains highly flexible in cold weather conditions and is resistant to hydraulic fluids, high temperatures, aging and weathering.
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 250 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 1-braid, synthetic fiber |
| Dynamic WP | 3000 psi / 206.8 bar |
| Min burst pressure | 12000 psi / 827.4 bar |
| Minimum temperature | -55 C / -67 F |
| Hose ID | 0.375 in / 9.5 mm |
| Hose OD | 0.65 in / 16.5 mm |
| Tube material | Polyester Elastomer |
| Cover material | Urethane |
| Cover type | Standard |
| Cover color | Black |
| Length | 250 ft / 76 m |
| Min bend radius | 1.8 in / 88.9 mm |
| SAE specs & DOT | 100R18 |
| Second Name | 44670008 |
| Product line | TH18 Hydraulic Hose |
