Description
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present.
Gates

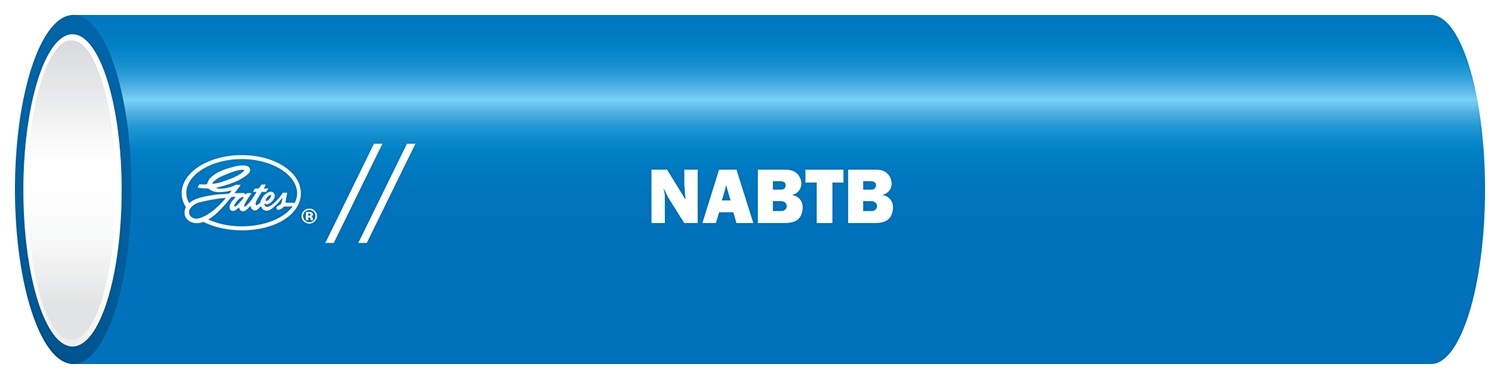

Gates | 43271002. 6NABTB XLGREEL. Air Brake Nylon Tubing
43271002
Part Number: 43271002
Truck, bus and mobile air brake, and service lines where heat and battery acids are not present.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 6 |
| Max temperature | +93 C / +200 F |
| Min order quantity | 1000 |
| UOM | FT |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | Nylon – Type B |
| Min burst pressure | 1407 psi / 97.01 bar |
| Minimum temperature | -40 C / -40 F |
| Hose OD | .375 in / 9.53 mm |
| Tube material | Heat/Light Stabilized Seamless Extruded Nylon |
| Cover material | Nylon |
| Cover type | Not Applicable |
| Cover color | Blue |
| Length | 1000 ft / 304.8 m |
| Min bend radius | 1.25 in / 165.1 mm |
| SAE specs & DOT | J844, DOT FMVSS 106-74 |
| Second Name | 43271002 |
| Product line | Air Brake Nylon Tubing |
