Graco 647648 - HUSKY PUMP,1050A-PAU3AA1TPACTP

Graco 647648 – HUSKY PUMP,1050A-PAU3AA1TPACTP

Part Number: 647648

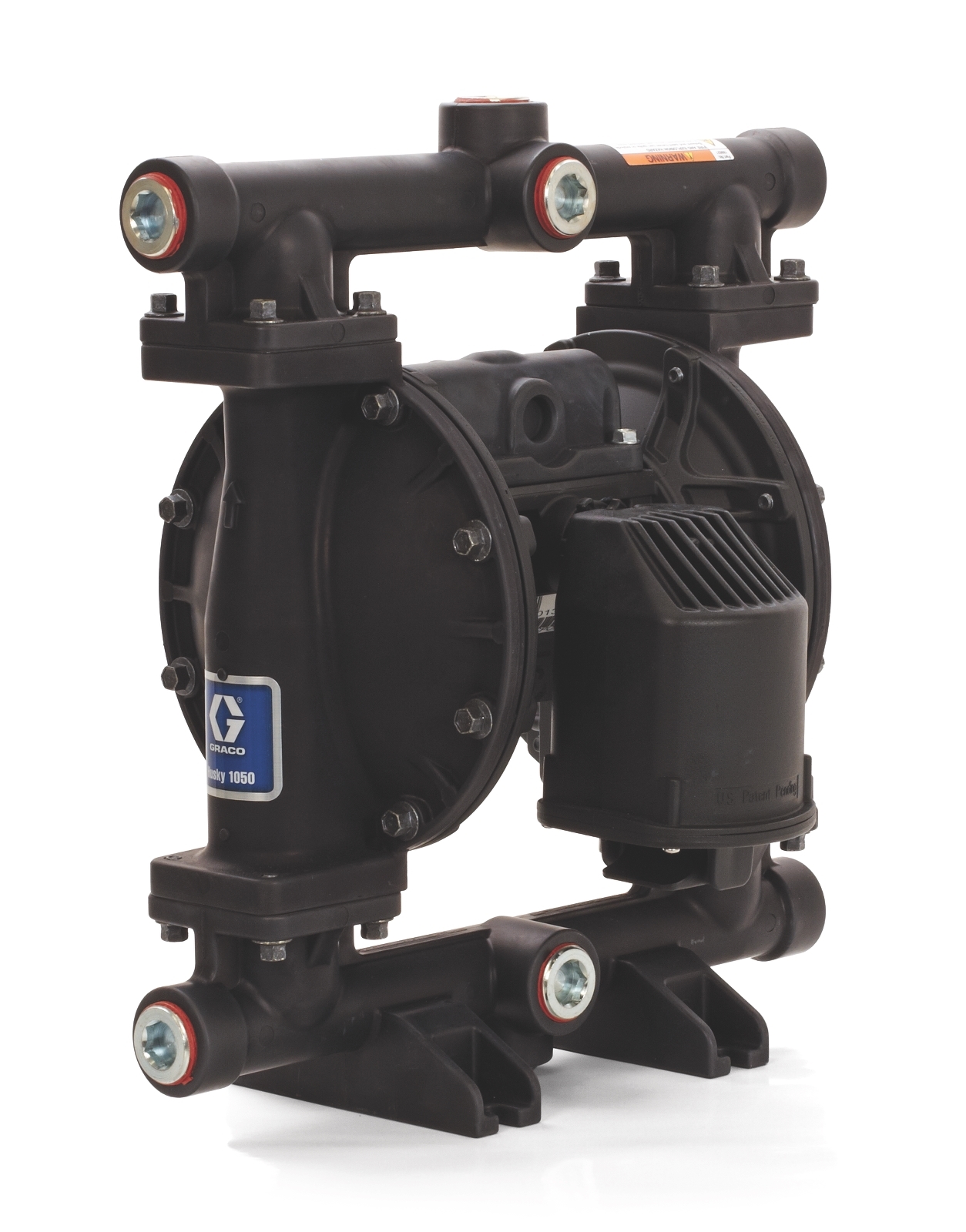

Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Fuel, TPE/AC

Description

Husky 1050 Series Air-Operated Double Diaphragm Transfer Pump for Fuel, TPE/AC

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	633955540019
Model	Husky
Application	Industrial
Compatible material	Fuel
For use with	Fuel Transfer
Air inlet size	1/2 IN
Air inlet thread gender	Female
Air inlet thread type	NPT
Ball material	Acetal
Country code of origin	US
Division code	LED
Fluid inlet size	1 IN / 2.54 CM / 25.4 MM
Fluid inlet thread gender	Female
Fluid inlet thread type	NPT
Fluid outlet size	1 IN / 2.54 CM / 25.4 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT
Manual id
Max air consumption	25 SCFM
Max air pressure	3.5 BAR / 350 KPA / 0.35 MPA / 50 PSI
Max cycle rate	280 CPM
Max flow rate	38 GPM / 144 L/MIN
Max fluid pressure	3.5 BAR / 350 KPA / 0.35 MPA / 50 PSI
Overall height	15.9 IN
Power source	Air
Product type	Pneumatic Diaphragm Pump
Product Page	https://www.graco.com/us/en/vehicle-service/product/647648-husky-1050.html
Pump ratio	1:01
Schedule b	8413500050
Taxonomy description	Diaphragm Pumps
Unit height	16.8 IN
Unit length	15.6 IN
Unit volume	1.274 FT3
Unit weight	27.5 LBS
Unit width	8.4 IN
Weight	23 LB
Wetted material	Aluminum;TPC-ET;Acetal;PTFE;Buna-N
Marketing owner	Salminen, Tyler A (Tyler)
Air exhaust port size	3/4 IN
Air ex port thr gender	Female
Air ex port thr type	NPT
Fluid section material	Aluminum
Manifold o ring material	None
Max solid size	0.125 IN / 0.3175 CM / 3.175 MM
Seat material	TPE (Hytrel)
