Description
Global M6K is recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: MegaCrimp® Couplings, Stainless Steel B Couplings.
Gates

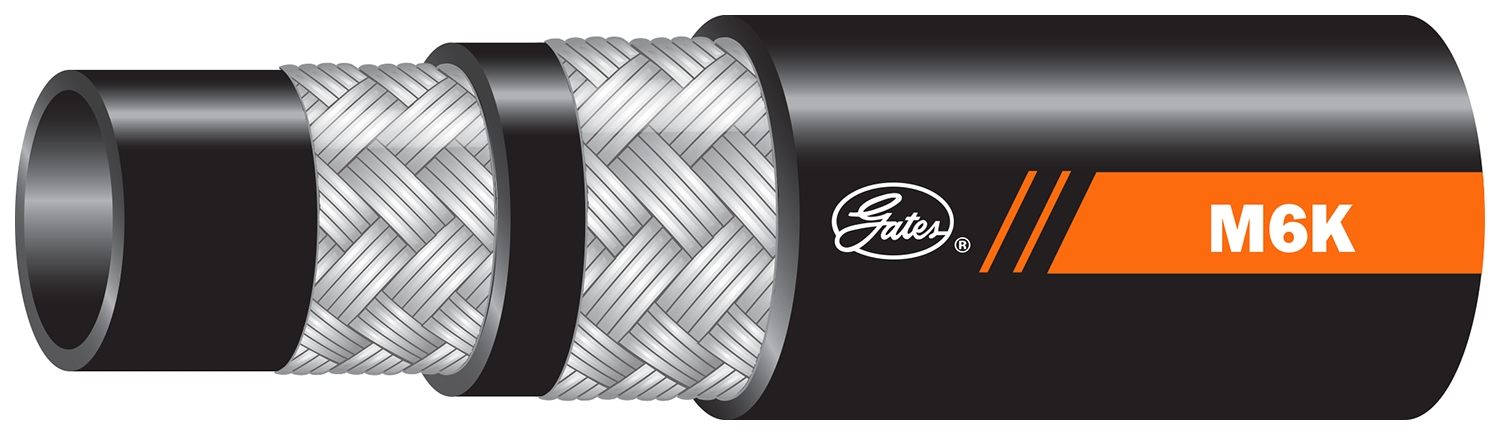

Gates | 46572697. 4M6K XREEL. M6K Hydraulic Hose
46572697
Part Number: 46572697
Global M6K is recommended for high-pressure hydraulic applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B. Recommended Couplings: MegaCrimp® Couplings, Stainless Steel B Couplings.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 4 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 440 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 6000 psi / 413.7 bar |
| Min burst pressure | 24000 psi / 1654.7 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.25 in / 6.4 mm |
| Hose OD | 0.58 in / 14.7 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | Nitrile/PVC – Type C2 |
| Cover type | Standard |
| Cover color | Black |
| Length | 440 ft / 134 m |
| Min bend radius | 2 in / 139.7 mm |
| Meets MSHA 2G | YES |
| Second Name | 46572697 |
| Product line | M6K Hydraulic Hose |
