Gates

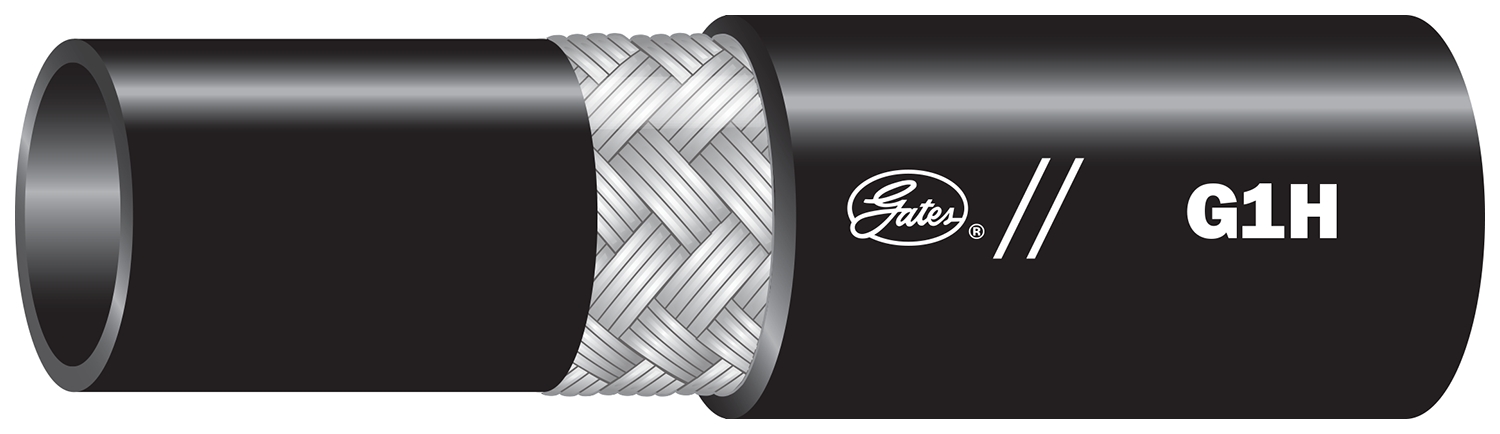

Gates | 46572175. 4G1H XREEL. G1H Hydraulic Hose

46572175

Part Number: 46572175

Global G1H hose is recommended for high-temperature, medium-pressure hydraulic oil line applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.

SKU: 4G1H XREEL Category:

Description

Global G1H hose is recommended for high-temperature, medium-pressure hydraulic oil line applications. Compatible with biodegradable hydraulic fluids like polyolester, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters.

Additional information

Manufacturer

Gates

Dash Size

4

Maximum Temperature

+135 C / +275 F

Minimum Order Quantity

440

UOM

FT

Hose Pressure

Variable Pressure-Low

Reinforcement

1-braid, wire

Dynamic WP

2750 psi / 189.6 bar

Min burst pressure

11000 psi / 758.4 bar

Minimum Temperature

-40 C / -40 F

Hose ID

0.25 in / 6.4 mm

Hose OD

0.53 in / 13.5 mm

Tube material

Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol

Cover Material(s)

CSM – Type M

Cover Type

Standard

Cover Color

Black

Length

440 ft / 134 m

Min bend radius

4 in / 33 mm

SAE specs & DOT

100R1 Type AT 2003 Revision

Meets MSHA 2G

YES

Second Name

46572175

Product Line

G1H Hydraulic Hose
