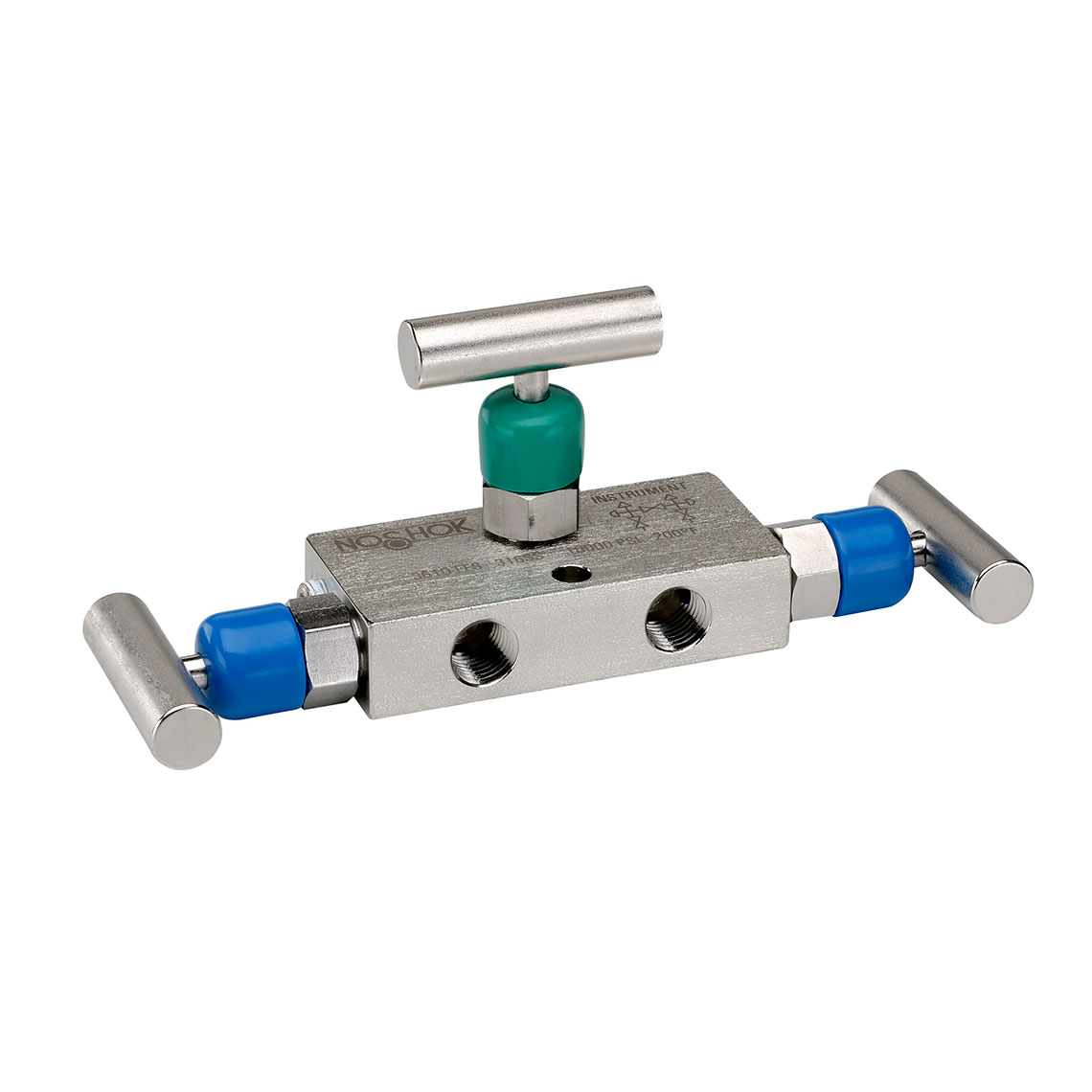

Noshok | 3610-FFS. 3610/3710 Series 0.141 in. Orifice Differential Pressure Mini 3 Manifold Valves with Hard Seat and Soft Tip

Noshok

Noshok | 3610-FFS. 3610/3710 Series 0.141 in. Orifice Differential Pressure Mini 3 Manifold Valves with Hard Seat and Soft Tip

Part Number: 3610-FFS

Compact design is ideal for installations with limited space, such as behind panels or in cabinets
Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability

SKU: 3610-FFS Category: 3610/3710 Series 0.141 in. Orifice Differential Pressure Mini 3 Manifold Valves with Hard Seat and Soft Tip

Description
Additional information

Description

Compact design is ideal for installations with limited space, such as behind panels or in cabinets
Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability

Additional information

Manufacturer	Noshok
Connection Type	National Pipe Thread (NPT)
Series	3-Valve
Seat	Hard Seat
Valve type	Female-Female
Valve material	Stainless Steel
Body material	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Connection size	1/4 in
Pressure rating at 200F	10,000 psi
Orifice size	0.141 in
Product line	3610/3710 Series 0.141 in. Orifice Differential Pressure Mini 3 Manifold Valves with Hard Seat and Soft Tip
