Graco 273158 - PM SERIES VALVE,PM8,NPT,GEAR LUBE

Graco 273158 – PM SERIES VALVE,PM8,NPT,GEAR LUBE

Part Number: 273158

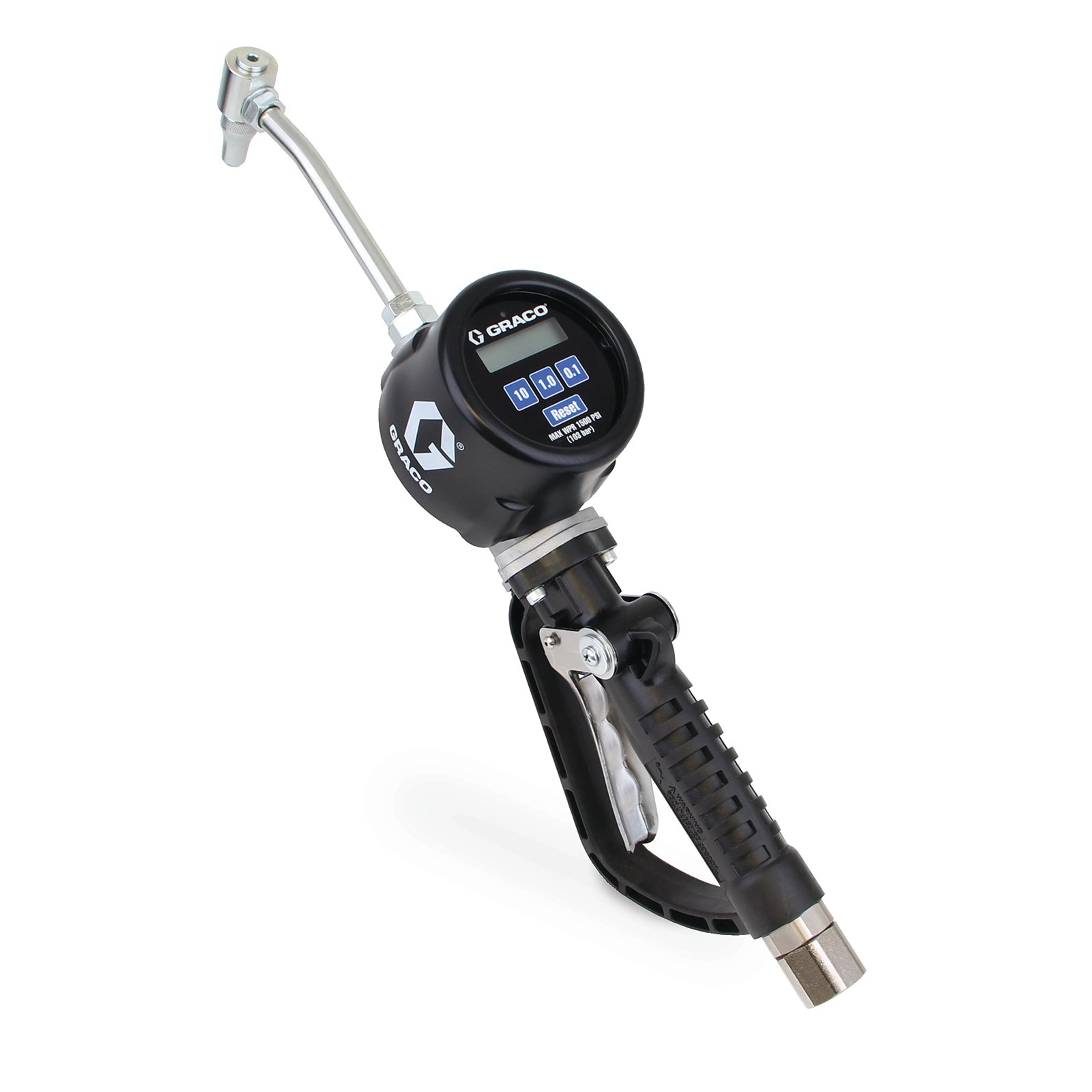

PM™ 8 Electronic Preset Gear Lube Meter – Rigid Extension – 1/2 in. (13 mm) Inlet – NPT

Description

PM™ 8 Electronic Preset Gear Lube Meter – Rigid Extension – 1/2 in. (13 mm) Inlet – NPT

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	769946175806
Compatible material	Petroleum-Based Oil;Synthetic-Based Oil;Antifreeze
Country code of origin	CN
Division code	LED
Fluid inlet thread gender	Female
Fluid outlet thread gender	Female
Includes	Nozzle;Extension
Inlet thread type	NPT
Ip rating	69K
Manual id	3A8307
Max flow rate	30283 CC/MIN / 505 CC/SEC / 8 GPM / 30.3 L/MIN
Max storage temperature	85 °C / 185 °F
Max working pressure	102 BAR / 10340 KPA / 10 MPA / 1500 PSI
Meter accuracy	±0.5%
Outlet thread type	ORB
Overall height	7.2 IN / 18.3 CM / 183 MM
Overall width	4.1 IN / 10.4 CM / 103.5 MM
Product type	Electronic Metered Dispense Valve
Product Page	https://www.graco.com/us/en/vehicle-service/product/273158.html
Schedule b	8481100090
Taxonomy description	Metered Dispense Valves
Unit height	5.25 IN
Unit length	16.5 IN
Unit volume	.451172 FT3
Unit weight	6.2 LBS
Unit width	9 IN
Wetted material	Aluminum;Stainless Steel;Carbon Steel;Acetal;Nitrile Rubber;Geolast®
Marketing owner	Norman, Shane A (Shane)
Calibration type	Factory Calibrated
Dispense type	Preset
Display type	Electronic
Extension type	Rigid
Max recorded dispense	19999
Max totalizer	19999
Meter pressure loss	4.1 BAR at 6 GPM / 60 PSI at 6 GPM
Meter technology	Oval Gear
Metering gun weight	2.4 KG / 5.2 LB
Min flow rate	0.25 GPM
Nozzle type	Manual
Recommended environment	Indoor/Outdoor
Trigger lock	Locking
Trigger protection type	Lock Off Button
Unit of measure	Quart;Pint;Liter;Gallon
Warranty	5 Years Structural Components, 3 Years Electronics, 1 Year Wear Parts
