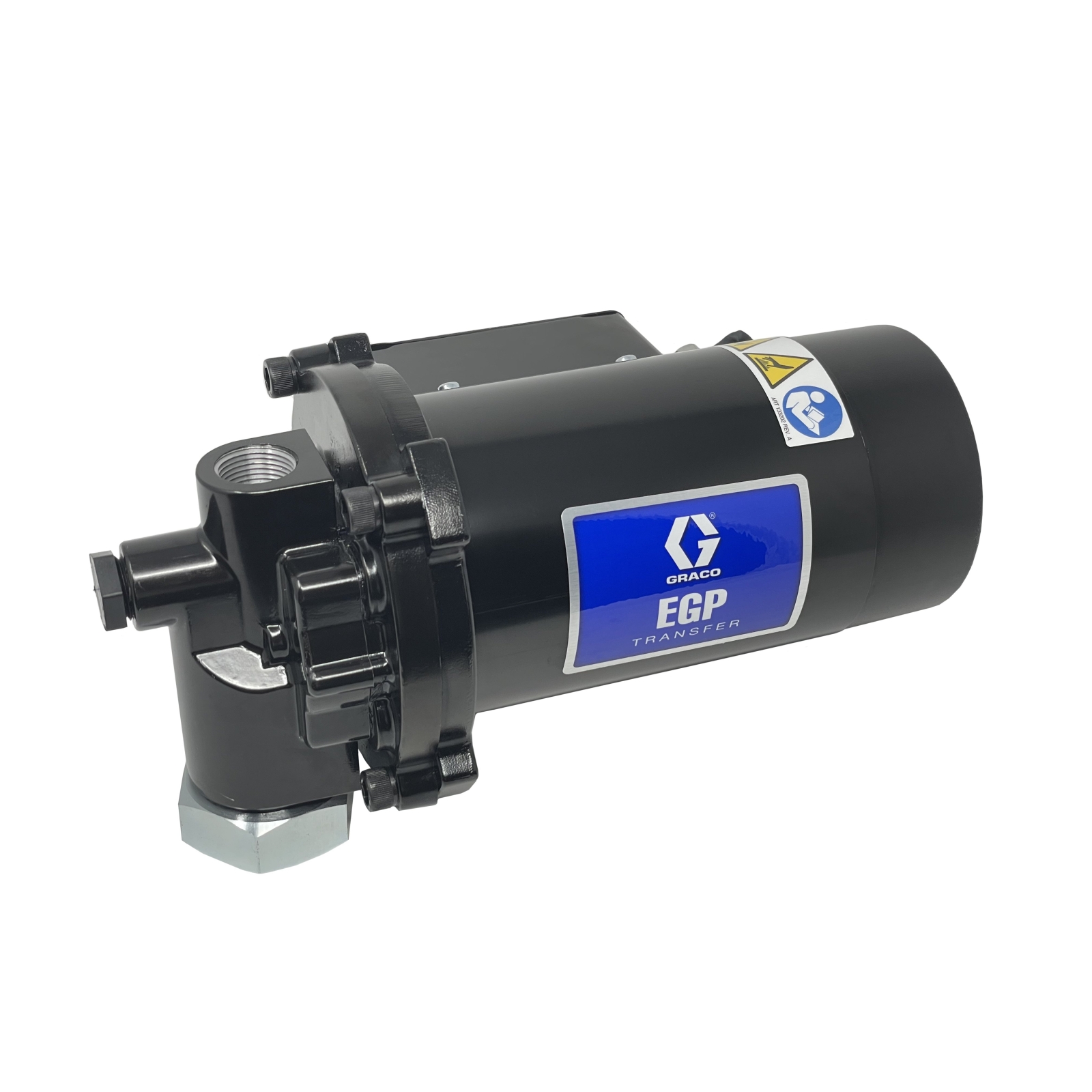

Graco 25T819 - EGP TRANSFER PUMP,12VDC,5.8GPM

Graco 25T819 – EGP TRANSFER PUMP,12VDC,5.8GPM

Part Number: 25T819

EGP™ Transfer Pump and Dispense Package , 12 VDC, 3.8 gpm (14.4 lpm), 65 psi (4.5 bar)

Description

EGP™ Transfer Pump and Dispense Package , 12 VDC, 3.8 gpm (14.4 lpm), 65 psi (4.5 bar)

Manufacturer	Graco
Primary application	Use the EGP Transfer Pump in locations where compressed air is unavailable or too cumbersome for shortdistance fluid transfer.
Primary UOM Code	EA
UPC Code	769946183726
Model	EGP
Application	Oil
Compatible material	Oil;Hydraulic Fluid;Antifreeze
Country code of origin	US
Division code	LED
Inlet thread gender	Female
Inlet thread type	NPT
Manual id	3A8569
Max flow rate	4 GPM / 15.1 L/MIN
Max working pressure	4.5 BAR / 0.5 MPA / 65 PSI
Outlet thread gender	Female
Overall depth	12.5 IN / 317.5 MM
Overall height	8 IN / 203.2 MM
Overall width	6.75 IN / 171.4 MM
Power rating	0.5 HP / 360 W
Power type	Electric
Product type	Gear Pump Package
Product Page	https://www.graco.com/us/en/vehicle-service/product/25t819.html
Schedule b	8413190000
Taxonomy description	Gear Pump Packages
Unit height	9 IN
Unit length	12 IN
Unit volume	1.12425 FT3
Unit weight	31.6 LBS
Unit width	18 IN
Voltage	12 VDC
Marketing owner	Salminen, Tyler A (Tyler)
Fluid pressure control type	Internal Bypass
Wetted parts	Zinc-Plated Carbon Steel;Stainless Steel;Galvanized Steel;Aluminum;Nitrile Rubber;PVC;PVC Cement
