Graco 24G745 - DIAPHRAGM PUMP,515P-PP01AP4PPFKPTPT-FK

Graco 24G745 – DIAPHRAGM PUMP,515P-PP01AP4PPFKPTPT-FK

Part Number: 24G745

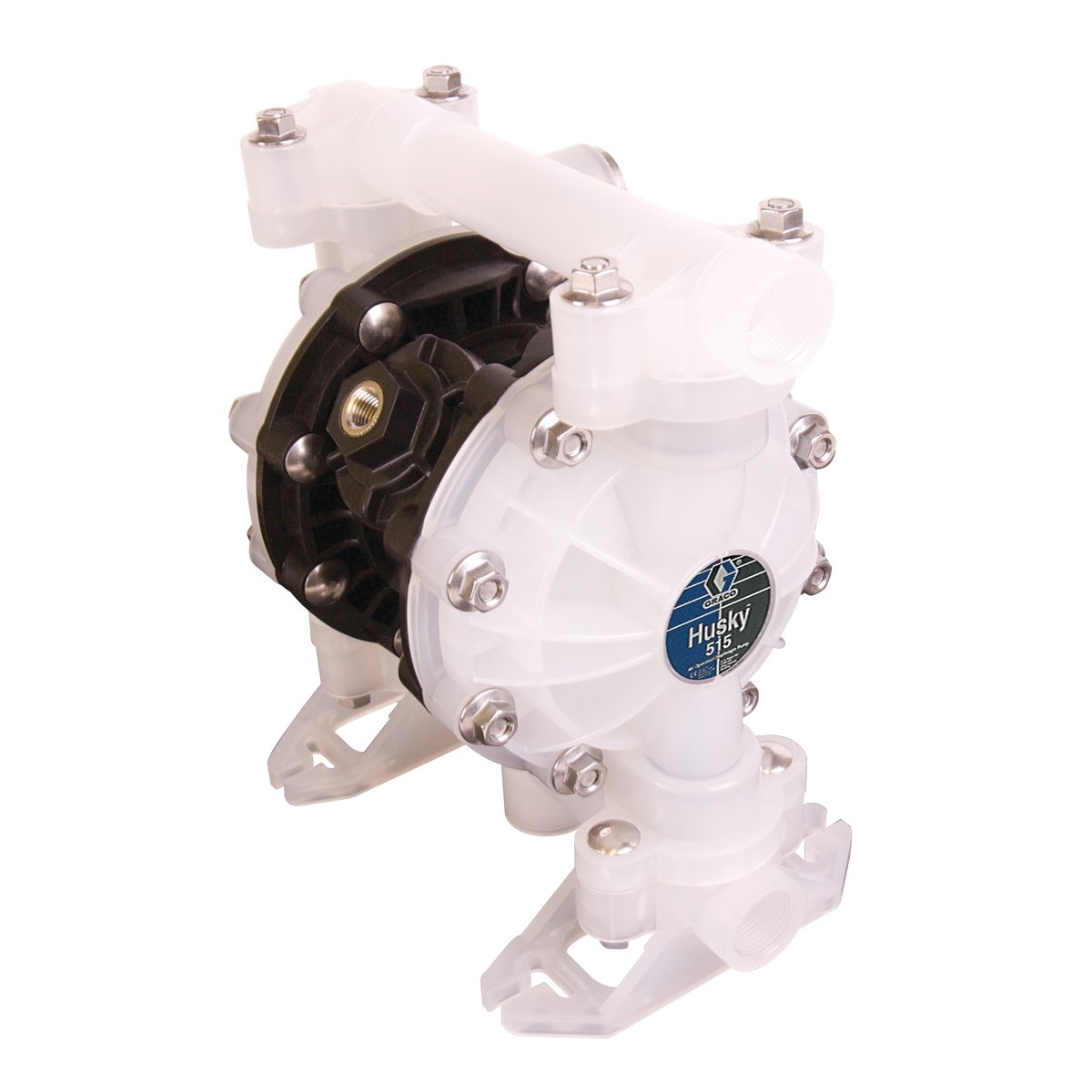

SD™ Blue Husky 515 Series Pump – 3/4 in. BSPP

Description

SD™ Blue Husky 515 Series Pump – 3/4 in. BSPP

Manufacturer	Graco
Primary UOM Code	EA
UPC Code	633955600324
Model	SD
Application	Industrial
Compatible material	Diesel Exhaust Fluid
For use with	DEF
Air inlet size	1/4 IN
Air inlet thread gender	Female
Air inlet thread type	NPT
Ball material	Fluoroelastomer
Country code of origin	US
Division code	LED
Fluid inlet size	3/4 IN / 1.905 CM / 19.05 MM
Fluid inlet thread gender	Female
Fluid inlet thread type	BSPP
Fluid outlet size	3/4 IN / 1.905 CM / 19.05 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	BSPP
Manual id	308981
Max air consumption	28 SCFM
Max air pressure	3.4 BAR / 340 KPA / 0.3 MPA / 50 PSI
Max cycle rate	400 CPM
Max flow rate	15 GPM / 56.8 L/MIN
Max fluid pressure	3.4 BAR / 340 KPA / 0.3 MPA / 50 PSI
Overall height	10.63 IN
Power source	Air
Product type	Pneumatic Diaphragm Pump
Product Page	https://www.graco.com/us/en/vehicle-service/product/24g745.html
Schedule b	8413500050
Taxonomy description	Diaphragm Pumps
Unit height	12 IN
Unit length	10.8 IN
Unit volume	.63 FT3
Unit weight	8.5 LBS
Unit width	8.4 IN
Weight	6.5 LB
Wetted material	Polypropylene;PTFE
Marketing owner	Haack, Jason D (Jason)
Air exhaust port size	3/8 IN
Air ex port thr gender	Female
Air ex port thr type	NPT
Fluid section material	Polypropylene
Manifold o ring material	PTFE
Max solid size	0.09375 IN / 0.2383 CM / 2.383 MM
Seat material	Polypropylene
