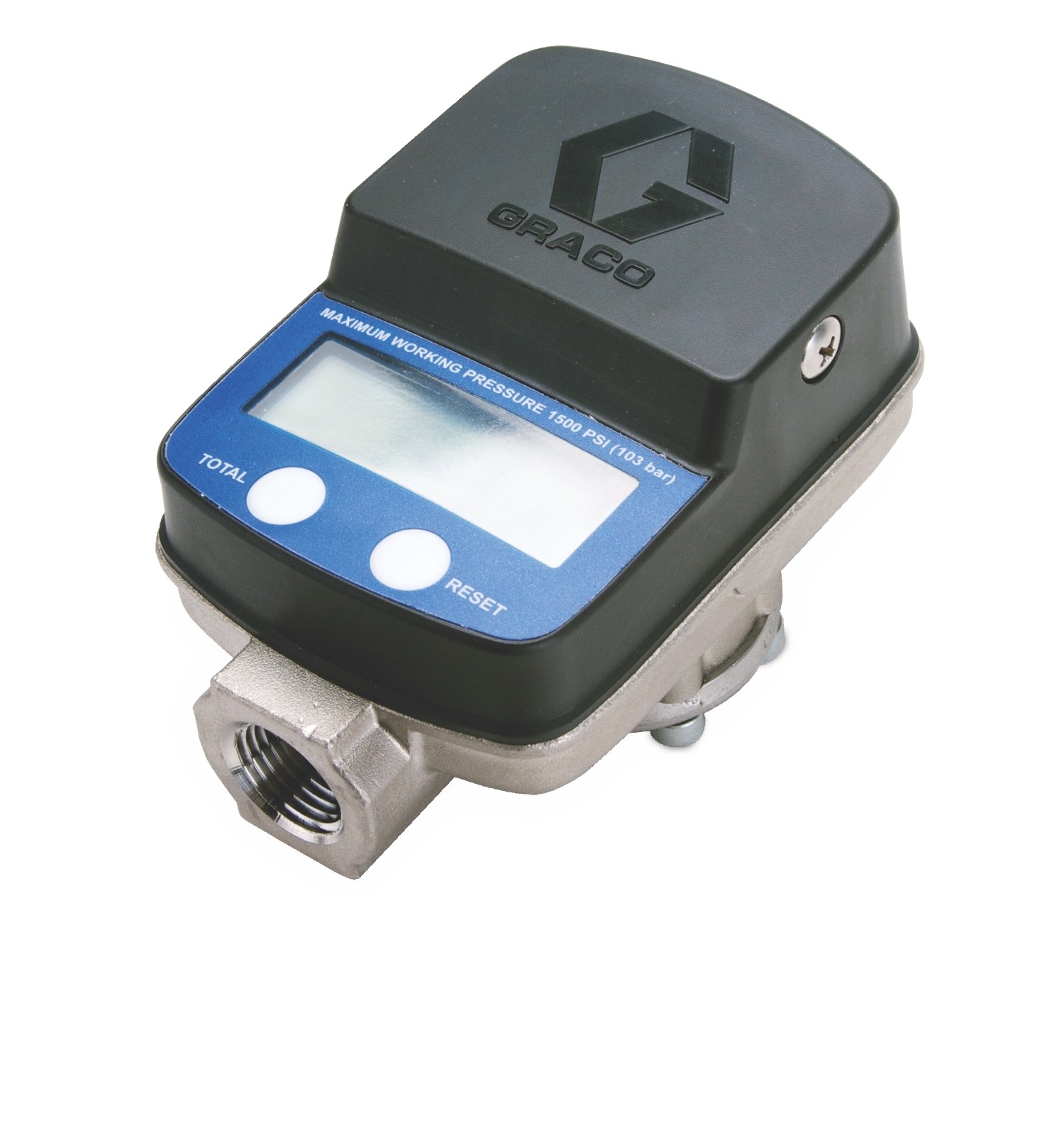

Graco 24G738 - METER, INLINE, BSPP

Graco 24G738 – METER, INLINE, BSPP

Part Number: 24G738

SDI15 Series Medium/High Pressure – Medium/High Flow In-Line Meter for Diesel Exhaust Fluid Applications – BSPP

Description

SDI15 Series Medium/High Pressure – Medium/High Flow In-Line Meter for Diesel Exhaust Fluid Applications – BSPP

Manufacturer	Graco
Primary application	Typical applications include automotive and heavy-duty dealerships, service and fast lube centers, fleet service facilities and in-plant.
Primary UOM Code	EA
UPC Code	633955600300
Compatible material	Diesel Exhaust Fluid
For use with	Diesel Exhaust Fluid
Country code of origin	US
Division code	LED
Inlet thread type	BSPP
Manual id	313048
Max flow rate	15 GPM / 57 L/MIN
Max working pressure	105 BAR / 10500 KPA / 10.5 MPA / 1500 PSI
Meter accuracy	±0.5%
Product type	Electronic In-Line Meter
Schedule b	9026105000
Taxonomy description	In-Line Electronic Meters
Unit height	9.6 IN
Unit length	8.4 IN
Unit volume	.224 FT3
Unit weight	2.8 LBS
Unit width	4.8 IN
Weight	0.82 KG / 1.8 LB
Wetted material	Stainless Steel;Fluoroelastomer;PBT
Marketing owner	Haack, Jason D (Jason)
Battery chemistry	Alkaline
Battery size	AA
Meter repeatability	±0.15%
Unit of measure	Quart;Liter;Gallon;Pint
