Graco 225931 - FIREBALL 300 PUMP

Graco 225931 – FIREBALL 300 PUMP

Part Number: 225931

Fire-Ball® 300 Series 5:1 275 Gallon (1040 Liter) Oil Pump -Bung Mounted Package

Description

Fire-Ball® 300 Series 5:1 275 Gallon (1040 Liter) Oil Pump -Bung Mounted Package

Manufacturer	Graco
Primary application	Install the Fire-Ball 300 5:1 in high pressure, medium volume oil transfer applications such as automotive dealerships, fast lube centers, and service shops.
Primary UOM Code	EA
UPC Code	633955512320
Model	Fire-Ball
Application	Industrial
Compatible material	Oil
Air inlet size	0.375 IN
Air inlet thread gender	Female
Air inlet thread type	NPT
Country code of origin	US
Division code	LED
Fluid inlet size	1.5 IN / 3.81 CM / 38.1 MM
Fluid inlet thread gender	Female
Fluid inlet thread type	NPT
Fluid outlet size	1/2 IN / 1.27 CM / 12.7 MM
Fluid outlet thread gender	Female
Fluid outlet thread type	NPT

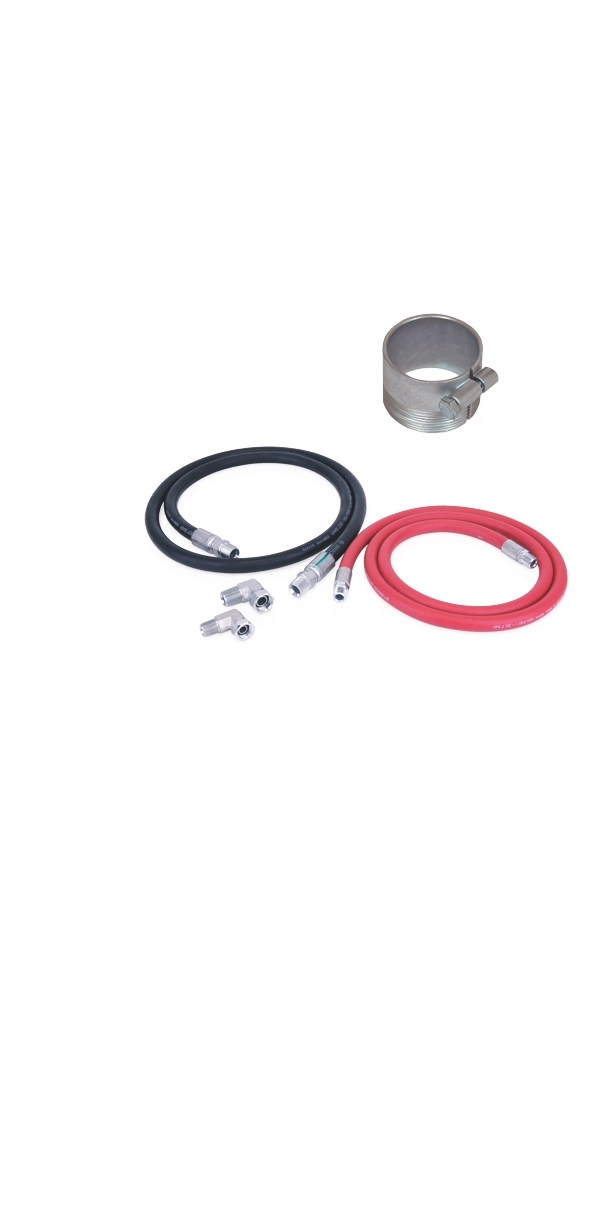

Includes	Hose Kit
Manual id	306518;307883
Max air working pressure	180 PSI
Max working pressure	62 BAR / 6200 KPA / 6.2 MPA / 900 PSI
Motor type	Pneumatic
Power type	Pneumatic
Product type	Piston Pump Package
Product Page	https://www.graco.com/us/en/vehicle-service/product/225931-fire-ball-300.html
Pump ratio	5:01
Pump weight	17 LB
Schedule b	8413190000
Taxonomy description	Piston Pump Packages
Unit length	0 IN
Unit weight	36.64 LBS
Wetted material	Steel;Polyurethane;Aluminum;Buna-N
