Description
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. Not to be used as live swivel. Special GL dies required.
Gates

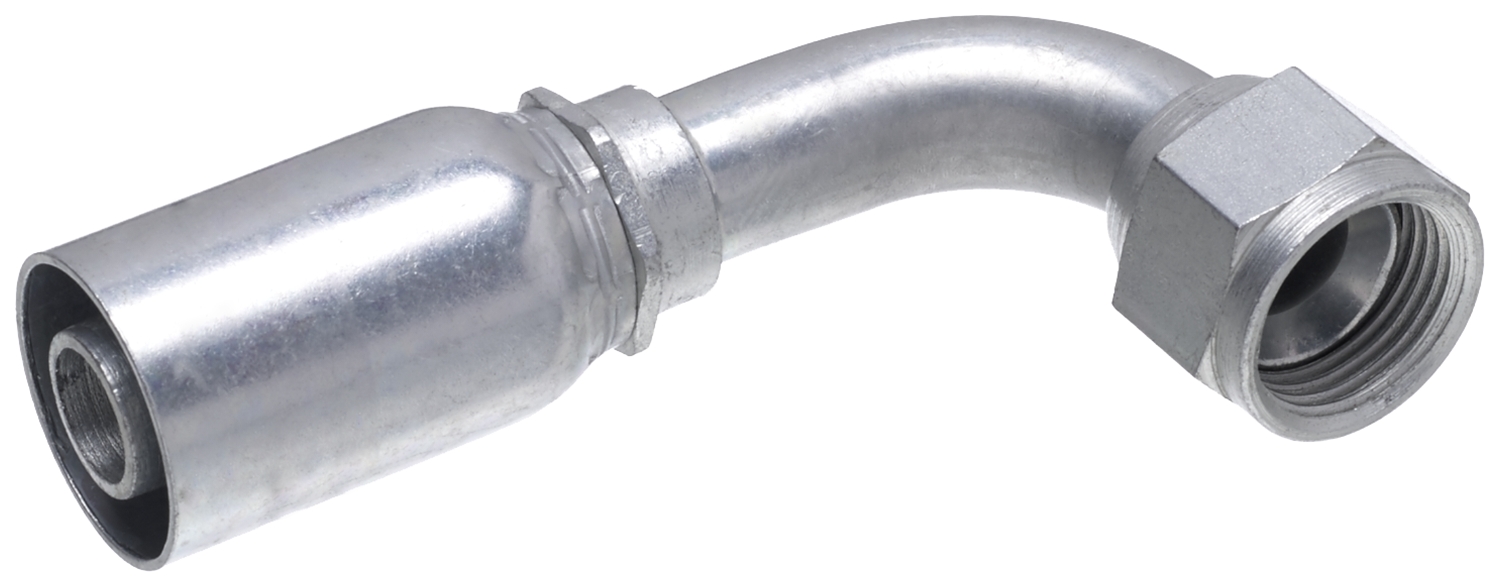

Gates | 73480233. 20GL-20FJX90TP-089 XBULK. GL Couplings
73480233
Part Number: 73480233
Gates GL low pressure couplings has been specifically designed with a pre-crimped soft shell to work with lower pressure hydraulic suction lines and low pressure return line hose. Not to be used as live swivel. Special GL dies required.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | TuffCoat™ |
| Configuration | Bent Tube |
| End size | 20 |
| End type | FJX |
| Fitting type | JIC 37° Flare |
| Hose recommend | GMV, MegaTech G5TB, MegaTech 500 |
| Material | Steel |
| Min order quantity | 50 |
| Thread size | 1 5/8-12 |
| UOM | EA |
| Angle | 90 |
| Swivel | YES |
| Hose dash size | 20 |
| Cut off length | 5.827 in / 148 mm |
| Second Name | 73480233 |
| Product line | GL Couplings |
