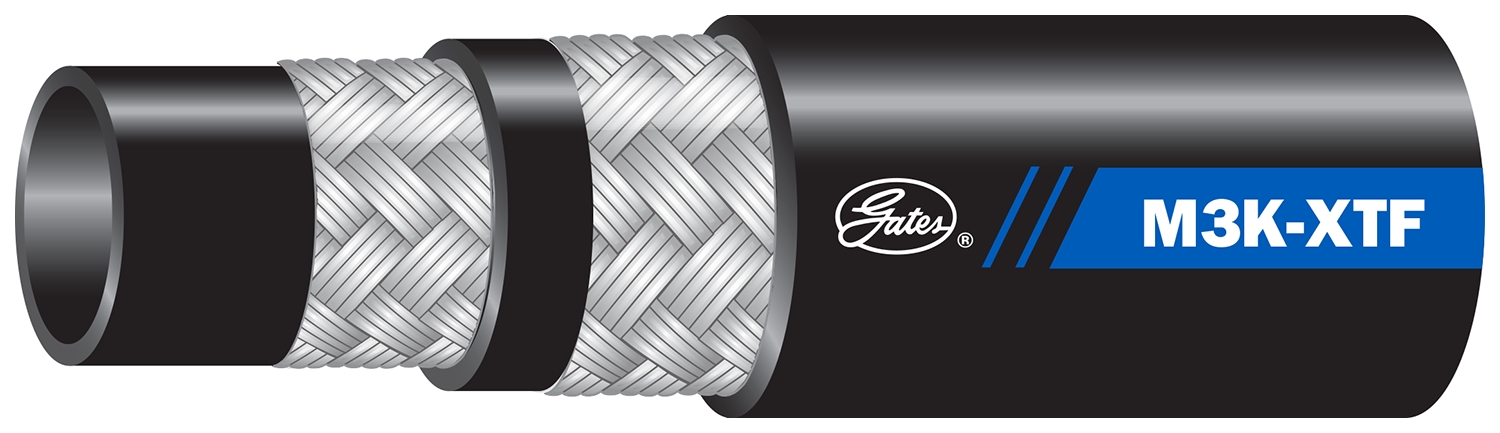

Part Number: 46572307
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. Recommended Couplings: MegaCrimp® Couplings, GlobalSpiral™ Couplings, Power Crimp® Couplings (-3), Stainless Steel B Couplings.
Recommended for high-pressure hydraulic oil line applications. Easy to route and to install in extremely tight areas. Exceeds ISO 18752 Grade B, SAE 100R17 and ISO11237 R17 working pressure, minimum bend radius requirements and performance requirements of EN 857 1SC. Recommended Couplings: MegaCrimp® Couplings, GlobalSpiral™ Couplings, Power Crimp® Couplings (-3), Stainless Steel B Couplings.
| Manufacturer | Gates |
|---|---|
| Dash size | 16 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 165 |
| UOM | FT |
| Hose pressure | Constant Pressure-High |
| Reinforcement | 2-braid, wire |
| Dynamic WP | 3250 psi / 224.1 bar |
| Min burst pressure | 13000 psi / 896.3 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 1 in / 25.4 mm |
| Hose OD | 1.48 in / 37.6 mm |
| Tube material | Nitrile – Type C, Hyd Fluids, Phosphate Esters, Water Glycol |
| Cover material | XtraTuff |
| Cover type | XtraTuff |
| Cover color | Black |
| Length | 165 ft / 50 m |
| Min bend radius | 4.5 in / 114.3 mm |
| SAE specs & DOT | 100R17 |
| Meets MSHA 2G | YES |
| Second Name | 46572307 |
| Product line | M3K Hydraulic Hose |
