Description
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Gates

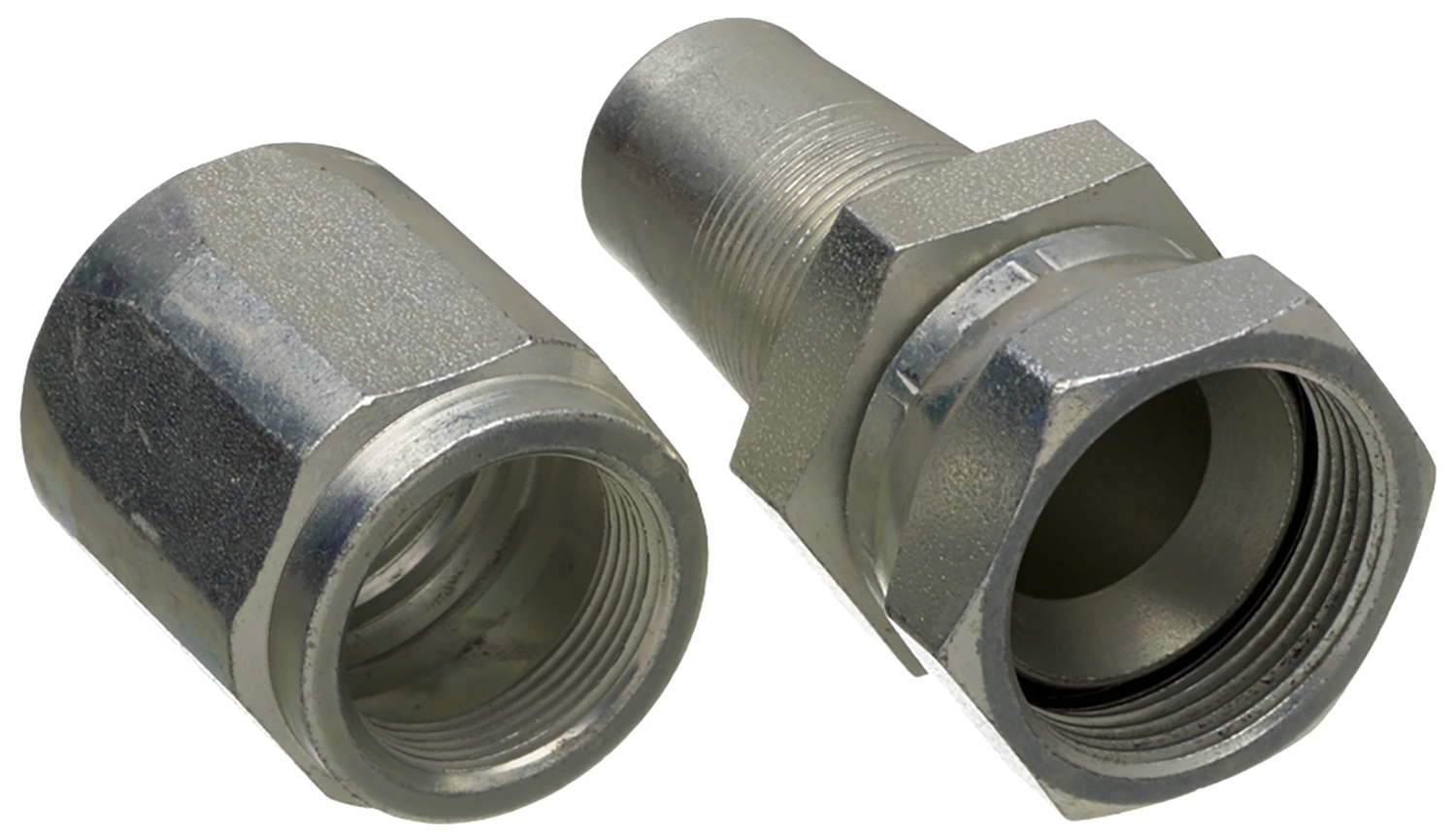

Gates | 723886461. 16C5-16RFZX. Field Attachable C5 Couplings
723886461
Part Number: 723886461
Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | Zinc-plated |
| Configuration | Straight |
| End size | 16 |
| End type | FZX |
| Fitting type | Parker Triple Thread Flare |
| Hose recommend | C5C, C5D, C5CHX, C5M |
| Material | Steel |
| Thread size | 1 5/16-14 |
| UOM | EA |
| Angle | Not Applicable |
| Swivel | NO |
| Hose dash size | 16 |
| Cut off length | 1.72 in / 43.68 mm |
| SAE/ISO/DOT specifications | DOT FMVSS 106-74 Type AII |
| Second Name | 723886461 |
| Product line | Field Attachable C5 Couplings |
