Description
Field Attachable Type T couplings provide a solution when crimping is not available.
Gates

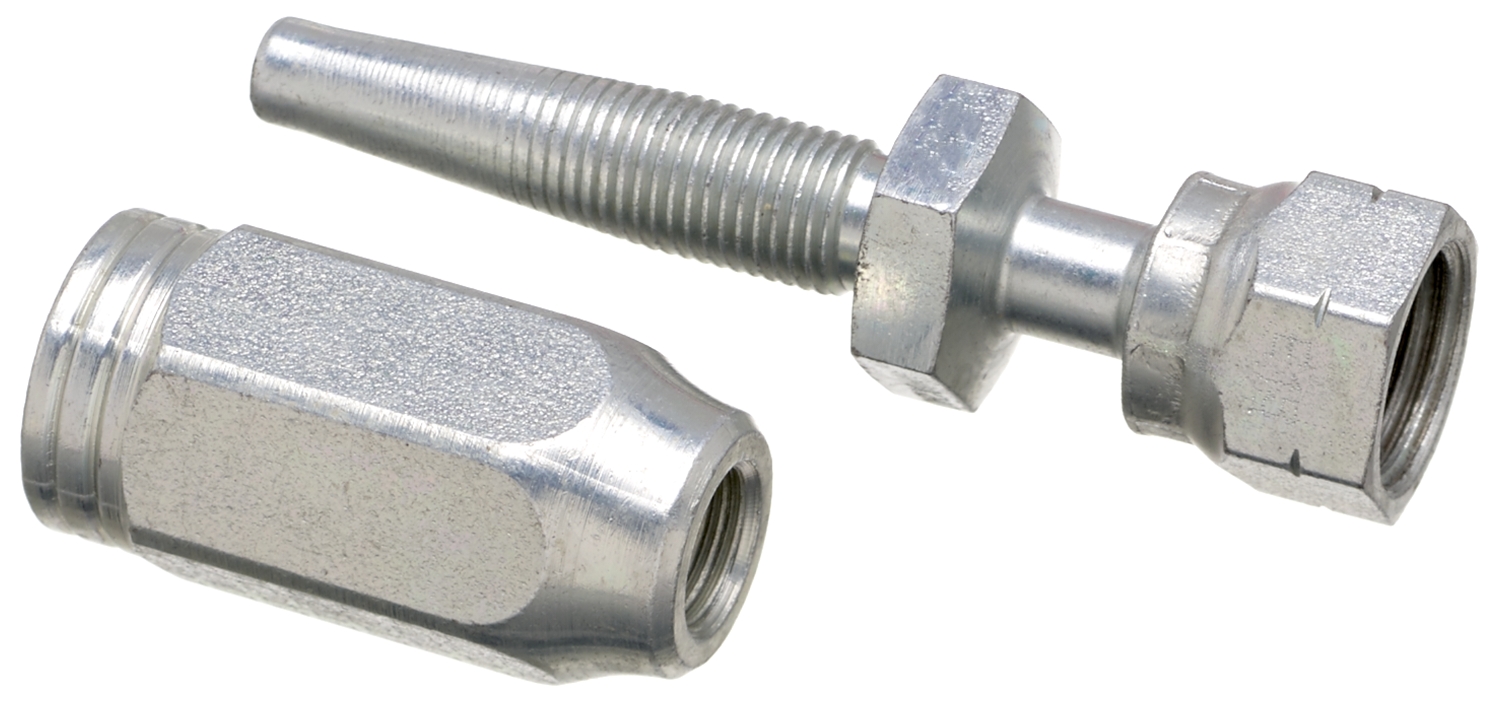

Gates | 723114165. 12C2AT-12RFFORX. Field Attachable Type T Couplings
723114165
Part Number: 723114165
Field Attachable Type T couplings provide a solution when crimping is not available.
Additional information
| Manufacturer | Gates |
|---|---|
| Coating | Zinc-plated |
| Configuration | Straight |
| End size | 12 |
| End type | FFORX |
| Fitting type | O-Ring Face Seal |
| Hose recommend | 2-Wire Global G2, Global G2L PolarFlex, Hot Oiler |
| Material | Steel |
| Thread size | 1 3/16-12 |
| UOM | EA |
| Angle | Not Applicable |
| Swivel | YES |
| Hose dash size | 12 |
| Cut off length | 2.03 in / 51.56 mm |
| SAE/ISO/DOT specifications | J1453 O-Ring Face Seal |
| Second Name | 723114165 |
| Product line | Field Attachable Type T Couplings |
