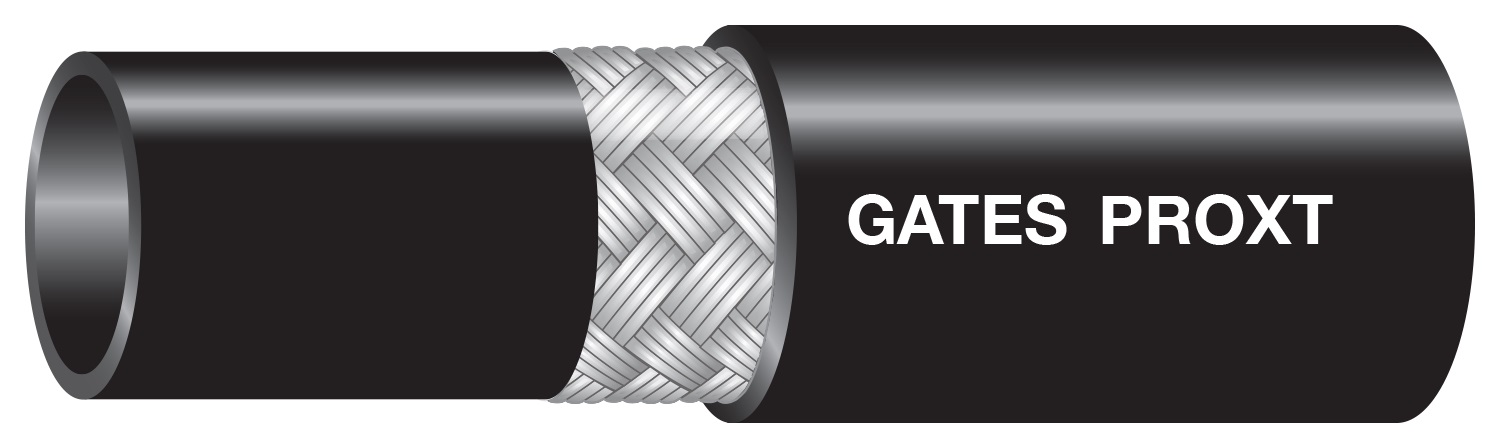

Part Number: 46579948
Gates PRO™ Series ProXT™ variable pressure hydraulic hoses offer performance specifically tailored to hydraulic applications across multiple end markets. All sizes deliver consistent performance to SAE, ISO and EN industry specifications. ProXT™ hoses are qualified for use with the full line of PRO™ Series couplings to ensure end-to-end performance — providing a broad range of engineered solutions for targeted hydraulic applications.
Gates PRO™ Series ProXT™ variable pressure hydraulic hoses offer performance specifically tailored to hydraulic applications across multiple end markets. All sizes deliver consistent performance to SAE, ISO and EN industry specifications. ProXT™ hoses are qualified for use with the full line of PRO™ Series couplings to ensure end-to-end performance — providing a broad range of engineered solutions for targeted hydraulic applications.
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +100 C / +212 F |
| Min order quantity | 220 |
| UOM | FT |
| Hose pressure | Variable Pressure-High |
| Reinforcement | High-tensile steel wire braid |
| Dynamic WP | 3625 psi / 250 bar |
| Min burst pressure | 14500 psi / 1000 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.625 in / 15.9 mm |
| Hose OD | 0.95 in / 24.1 mm |
| Tube material | Nitrile |
| Cover material | Nitrile, PVC Synthetic Rubber |
| Cover type | Standard |
| Cover color | Black |
| Length | 220 ft / 67 m |
| Min bend radius | 4 in / 76.6 mm |
| SAE specs & DOT | 100R16, 100R2 |
| Meets MSHA 2G | YES |
| Second Name | 46579948 |
| Product line | PROXT PRO Series Hose |
