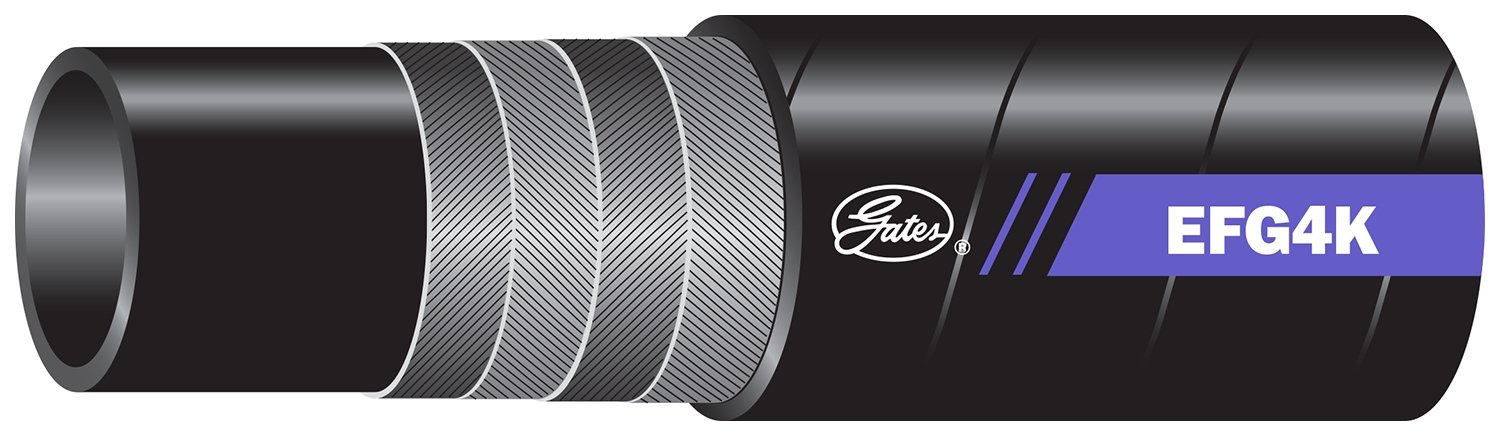

Part Number: 46514007
EFG4K hose is recommended for very high–pressure, high–impulse applications. Exceeds all requirements of ISO 18752 Grade D (except OD for -6 to -10), SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based
fluids.
EFG4K hose is recommended for very high–pressure, high–impulse applications. Exceeds all requirements of ISO 18752 Grade D (except OD for -6 to -10), SAE 100R12, EN 856 R12 and ISO 3862 Type R12. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum–based
fluids.
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +121 C / +250 F |
| UOM | EA |
| Hose pressure | Constant Pressure-Very High |
| Reinforcement | 4-spiral, wire |
| Dynamic WP | 4000 psi / 275.8 bar |
| Min burst pressure | 16000 psi / 1103.2 bar |
| Minimum temperature | -40 C / -40 F |
| Hose ID | 0.625 in / 15.9 mm |
| Hose OD | 1.09 in / 27.7 mm |
| Tube material | Nitrile – Type C, Oil Resistant |
| Cover material | Polychloroprene (Neoprene) – Type A |
| Cover type | Standard |
| Cover color | Black |
| Length | 25 ft / 8 m |
| Min bend radius | 4 in / 101.6 mm |
| SAE specs & DOT | 100R12 |
| Meets MSHA 2G | YES |
| Second Name | 46514007 |
| Product line | EFG4K Hydraulic Hose |
