Description
Recommended for all commercial and recreational vessel fuel line applications, C5M Marine Fuel Line hose is suitable for marine diesel, gasoline, B100 Biodiesel, gasohol fuels and hot oil applications.
Gates

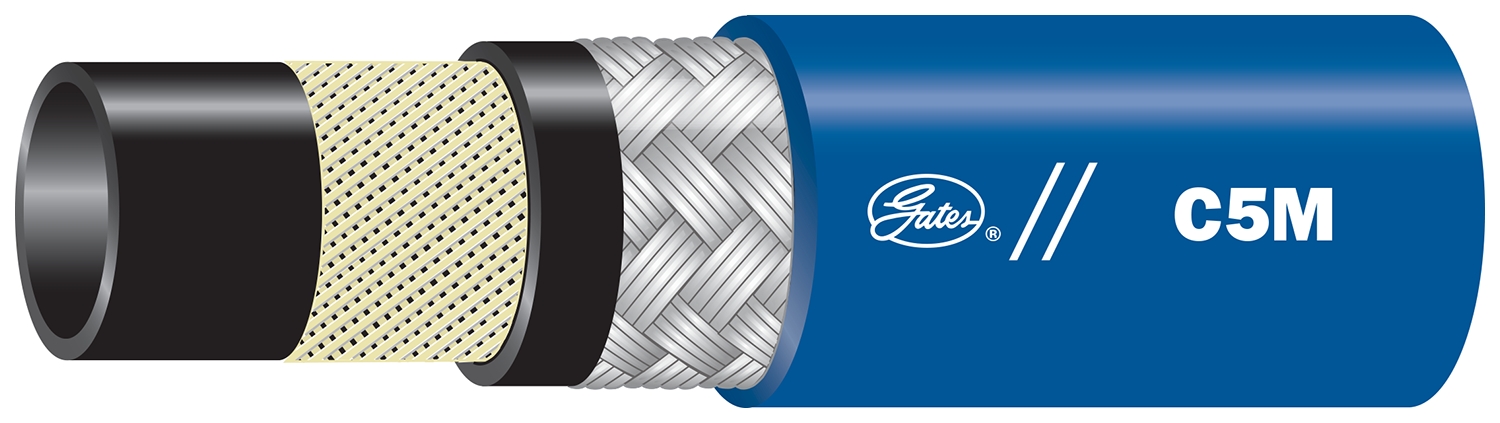

Gates | 36584598. 10C5M X50FT. C5M Marine Fuel Line Hose
36584598
Part Number: 36584598
Recommended for all commercial and recreational vessel fuel line applications, C5M Marine Fuel Line hose is suitable for marine diesel, gasoline, B100 Biodiesel, gasohol fuels and hot oil applications.
Additional information
| Manufacturer | Gates |
|---|---|
| Dash size | 10 |
| Max temperature | +100 C / +212 F |
| UOM | EA |
| Hose pressure | Constant Pressure-Low |
| Reinforcement | 1-braid, textile |
| Dynamic WP | 500 psi / 34.5 bar |
| Min burst pressure | 2000 psi / 137.9 bar |
| Minimum temperature | -20 C / -4 F |
| Hose ID | 0.5 in / 12.7 mm |
| Hose OD | 0.92 in / 23.4 mm |
| Tube material | Nitrile – Type C |
| Cover material | Modified Nitrile – Type C2 |
| Cover type | Standard |
| Cover color | Blue |
| Length | 50 ft / 15 m |
| Min bend radius | 2.3 in / 58.4 mm |
| Vacuum (Hg) | 10 in / 254 mm |
| SAE specs & DOT | J1527 Type A Class 1, J1942, J30R2 |
| Meets MSHA 2G | YES |
| Second Name | 36584598 |
| Product line | C5M Marine Fuel Line Hose |
