Donaldson | P560837. MUFFLER, ROUND STYLE 6

Donaldson

Donaldson | P560837. MUFFLER, ROUND STYLE 6

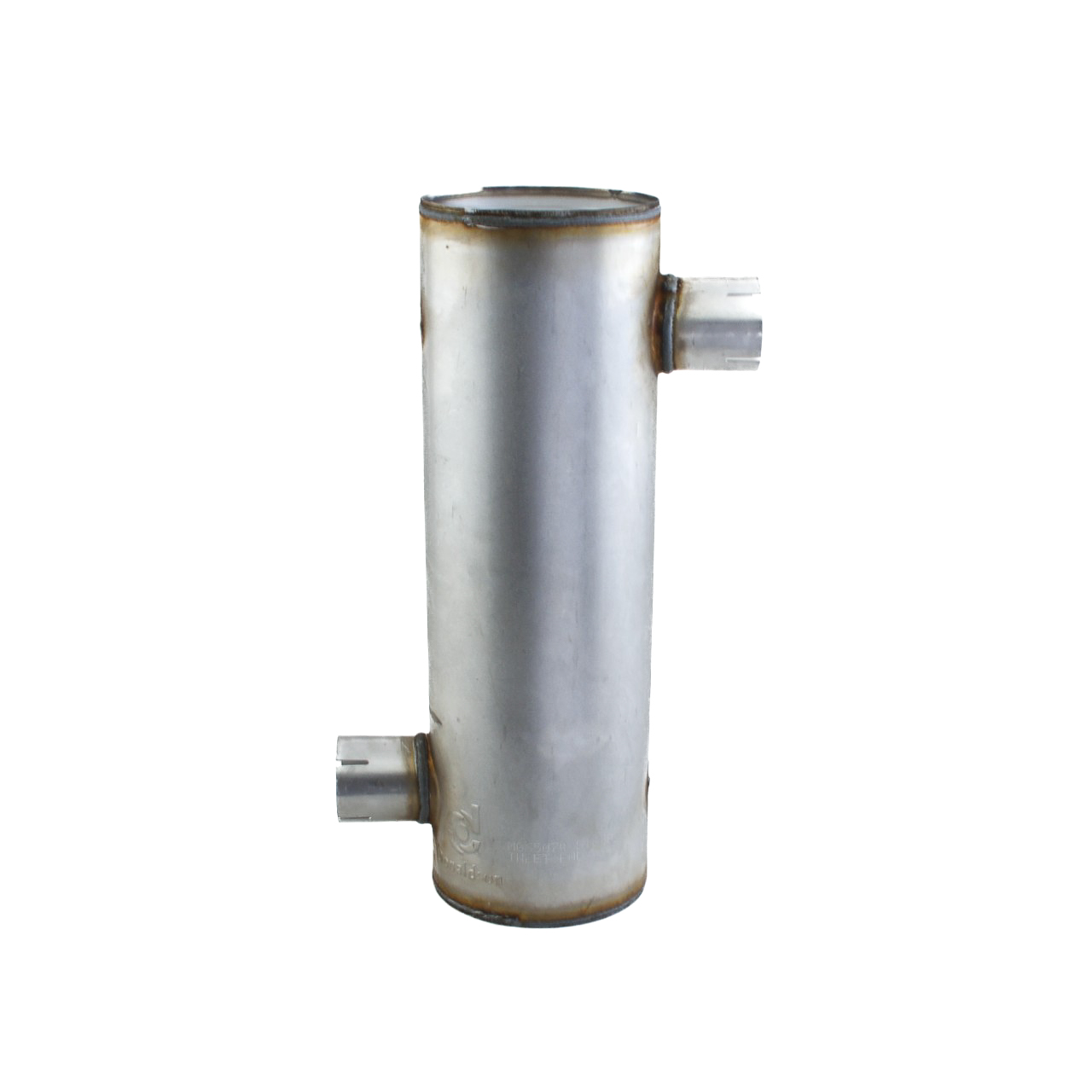

Part Number: P560837

Muffler, Round Style 6

SKU: P560837 Category: Exhaust

Description
Additional information

Description

Muffler, Round Style 6

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	167.9 MM / 6.61 IN
Body length	528.6 MM / 20.81 IN
Filter style	Style 6
Inlet diameter	63.88 MM / 2.51 IN
Manufacturer	Donaldson
Outlet diameter	63.88 MM / 2.51 IN
Overall length	528.6 MM / 20.81 IN
Rated flow hr	19.6 CMM
Rated flow lr	11.3 CMM
Rated flow mr	16 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	12:00
