Donaldson | P174298. MUFFLER, OVAL STYLE 3

Donaldson

Donaldson | P174298. MUFFLER, OVAL STYLE 3

Part Number: P174298

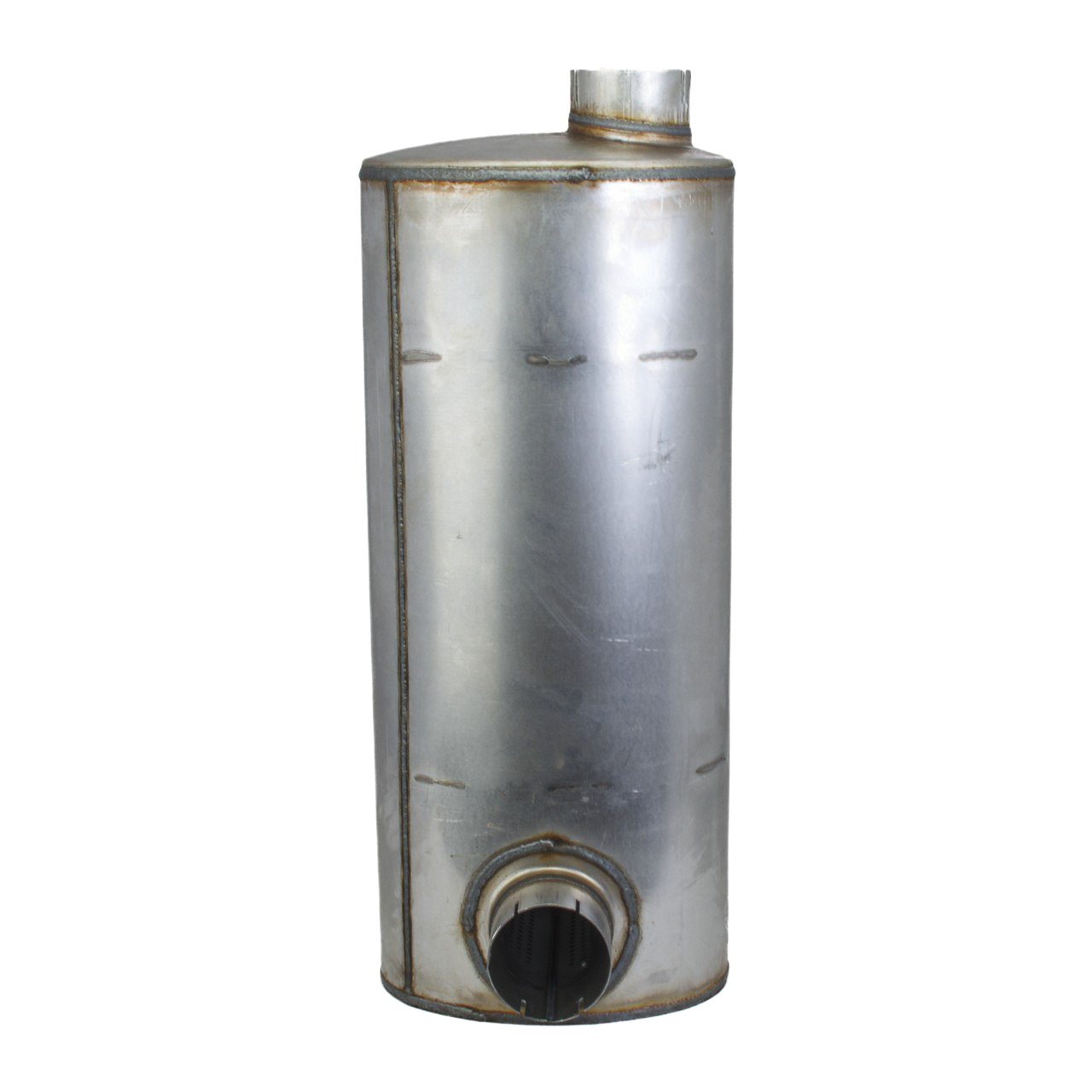

Muffler, Oval Style 3

SKU: P174298 Category: Exhaust

Description
Additional information

Description

Muffler, Oval Style 3

Additional information

Attenuation hr	20 DBA
Attenuation lr	15 DBA
Body diameter maximum	292 MM / 11.5 IN
Body diameter minimum	209.55 MM / 8.25 IN
Body length	663.45 MM / 26.12 IN
Filter style	Style 3
Inlet diameter	89.28 MM / 3.51 IN
Manufacturer	Donaldson
Outlet diameter	89.28 MM / 3.51 IN
Overall length	742.95 MM / 29.25 IN
Rated flow hr	31.5 CMM
Rated flow lr	18.2 CMM
Rated flow mr	25.8 CMM
Back pressure low range	25 MM HG / 0.98 IN HG
Back pressure mid range	51 MM HG / 2.01 IN HG
Back pressure high range	76 MM HG / 2.99 IN HG
Inlet clock position	6:00
Outlet clock position	9:00
